View larger
Images are for illustrative purposes only. Please refer to data sheet for details

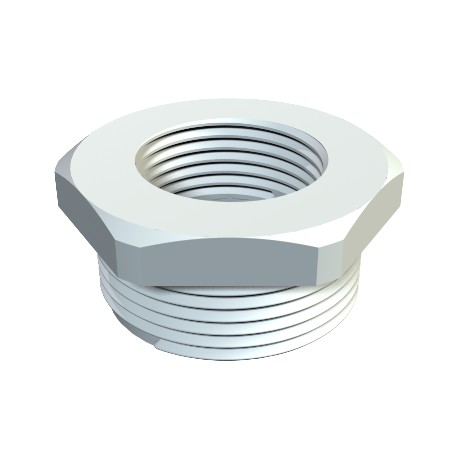

107 R M63-32 PA 2030670 OBO BETTERMANN Reduction , M63-M32, Light grey, 7035, Polyamide, PA
107 R M63-32 PA
2030670
OBO BETTERMANN
25 Pcs.
Reduction , M63-M32, Light grey, 7035, Polyamide, PA
Reduction, metric thread. Reduction with metric internal and external thread for mounting plastic cable glands on enclosures. Protection class IP54 without additional connecting seal. Protection class up to IP68 possible with additional connecting seal, e.g. O-ring or flat sealing ring.
Cables > Enlargement/reducing ring
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,138 kg CO2e / 1 Piece |
|---|---|
| Colour | Light grey; RAL 7035 |
| Dimension | M63-M32 |
| Dimension E | 75 mm |
| Dimension L | 18 mm |
| Dimension L1 | 12 mm |
| Dimension L2 | 6 mm |
| Dimension L3 | 18 mm |
| explosion-proof | no |
| Halogen-free | yes |
|---|---|
| Material | Polyamide |
| Nickel-plated | no |
| Thread dimension, metric, external | 63 |
| Thread dimension, metric, internal | 32 |
| Thread length | 12 mm |
| Thread type: External thread | Metric |
| Thread type: Internal thread | Metric |
| WAF | 68 |
