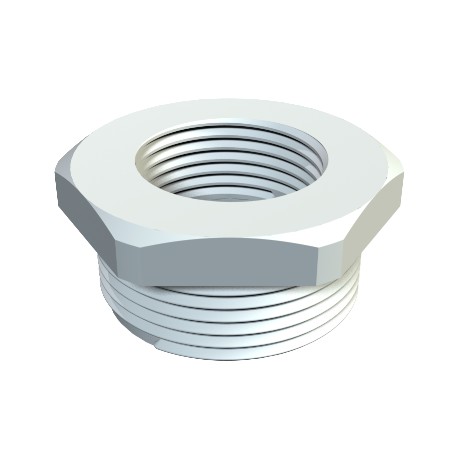

107 R M50-25 PA 2030659 OBO BETTERMANN Reduction , M50-M25, Light grey, 7035, Polyamide, PA
107 R M50-25 PA
2030659
OBO BETTERMANN
25 Pcs.
Cables > Enlargement/reducing ring
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A polyamide thread reduction component from Obo Bettermann facilitates the transition between different metric thread dimensions on control boxes and distribution boards. It enables flexible equipment configuration when gland sizes differ from pre-punched enclosure knockouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 0,0897 kg CO2e / 1 Piece
- Colour: Light grey; RAL 7035
- Dimension: M50-M25
- Dimension E: 60 mm
- Dimension L: 18 mm
- Dimension L1: 12 mm
- Dimension L2: 6 mm
- Dimension L3: 18 mm
- explosion-proof: no
- Halogen-free: yes
- Material: Polyamide
- Nickel-plated: no
- Thread dimension, metric, external: 50
- Thread dimension, metric, internal: 25
- Thread length: 12 mm
- Thread type: External thread: Metric
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,0897 kg CO2e / 1 Piece |
|---|---|
| Colour | Light grey; RAL 7035 |
| Dimension | M50-M25 |
| Dimension E | 60 mm |
| Dimension L | 18 mm |
| Dimension L1 | 12 mm |
| Dimension L2 | 6 mm |
| Dimension L3 | 18 mm |
| explosion-proof | no |
| Halogen-free | yes |
|---|---|
| Material | Polyamide |
| Nickel-plated | no |
| Thread dimension, metric, external | 50 |
| Thread dimension, metric, internal | 25 |
| Thread length | 12 mm |
| Thread type: External thread | Metric |
| Thread type: Internal thread | Metric |
| WAF | 55 |
