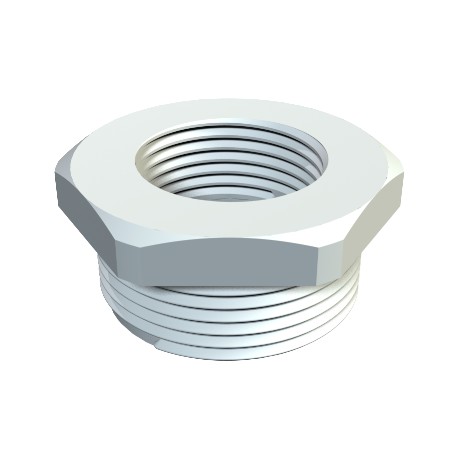

OBO BETTERMANN 107 R M50-20 PA 107 R M50-20 PA 2030655 OBO BETTERMANN Reduction , M50-M20, Light grey, 7035, Polyamide, PA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

107 R M50-20 PA 2030655 OBO BETTERMANN Reduction , M50-M20, Light grey, 7035, Polyamide, PA

107 R M50-20 PA

2030655

OBO BETTERMANN

25 Pcs.

Reduction , M50-M20, Light grey, 7035, Polyamide, PA Reduction, metric thread. Reduction with metric internal and external thread for mounting plastic cable glands on enclosures. Protection class IP54 without additional connecting seal. Protection class up to IP68 possible with additional connecting seal, e.g. O-ring or flat sealing ring.

Cables > Enlargement/reducing ring
Gls Plastic

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Heavy industrial junction systems often require substantial metric reductions to scale down oversized housing punch-outs for standard control cabling. This Obo Bettermann component offers reliable halogen-free performance for demanding electrical infrastructure.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,1086 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL 7035: 7035
  • Dimension: M50-M20
  • Dimension E: 60 mm
  • Dimension L: 18 mm
  • Dimension L1: 12 mm
  • Dimension L2: 6 mm
  • Dimension L3: 18 mm
  • explosion-proof: no
  • Halogen-free: yes
  • Material: Polyamide
  • Nickel-plated: no
  • Thread dimension, metric, external: 50
  • Thread dimension, metric, internal: 20
  • Thread length: 12 mm
  • Thread type: External thread: Metric

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,1086 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
DimensionM50-M20
Dimension E60 mm
Dimension L18 mm
Dimension L112 mm
Dimension L26 mm
Dimension L318 mm
explosion-proofno
Halogen-freeyes
MaterialPolyamide
Nickel-platedno
Thread dimension, metric, external50
Thread dimension, metric, internal20
Thread length12 mm
Thread type: External threadMetric
Thread type: Internal threadMetric
WAF55
