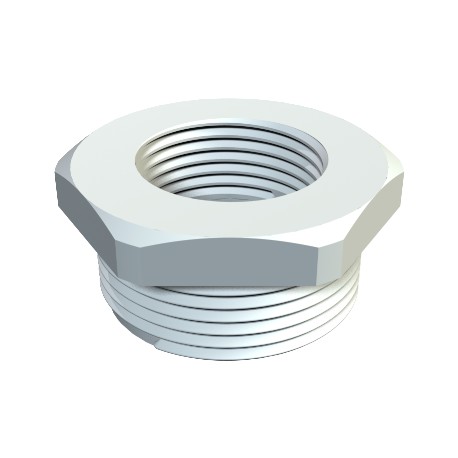

OBO BETTERMANN 107 R M40-25 PA 107 R M40-25 PA 2030649 OBO BETTERMANN Reduction , M40-M25, Light grey, 7035, Polyamide, PA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

107 R M40-25 PA 2030649 OBO BETTERMANN Reduction , M40-M25, Light grey, 7035, Polyamide, PA

107 R M40-25 PA

2030649

OBO BETTERMANN

50 Pcs.

Reduction , M40-M25, Light grey, 7035, Polyamide, PA Reduction, metric thread. Reduction with metric internal and external thread for mounting plastic cable glands on enclosures. Protection class IP54 without additional connecting seal. Protection class up to IP68 possible with additional connecting seal, e.g. O-ring or flat sealing ring.

Cables > Enlargement/reducing ring
Gls Plastic

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Polyamide reduction elements like this Obo Bettermann 107 R M40-25 PA unit provide non-conductive, lightweight adaptation for cable entry systems across commercial and light industrial applications. They allow panel builders to step down enclosure knockouts to smaller thread formats efficiently. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0586 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL 7035:
  • Dimension: M40-M25
  • Dimension E: 50,5 mm
  • Dimension L: 16 mm
  • Dimension L1: 10 mm
  • Dimension L2: 6 mm
  • Dimension L3: 16 mm
  • explosion-proof: no
  • Halogen-free: yes
  • Material: Polyamide
  • Nickel-plated: no
  • Thread dimension, metric, external: 40
  • Thread dimension, metric, internal: 25
  • Thread length: 10 mm
  • Thread type: External thread: Metric

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,0586 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
DimensionM40-M25
Dimension E50,5 mm
Dimension L16 mm
Dimension L110 mm
Dimension L26 mm
Dimension L316 mm
explosion-proofno
Halogen-freeyes
MaterialPolyamide
Nickel-platedno
Thread dimension, metric, external40
Thread dimension, metric, internal25
Thread length10 mm
Thread type: External threadMetric
Thread type: Internal threadMetric
WAF46
