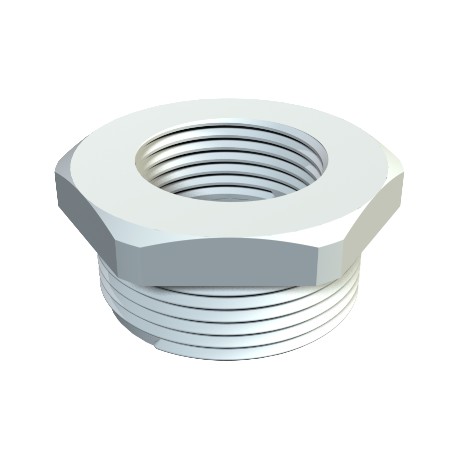

107 R M32-25 PA 2030640 OBO BETTERMANN Reduction , M32-M25, Light grey, 7035, Polyamide, PA
107 R M32-25 PA
2030640
OBO BETTERMANN
50 Pcs.
Cables > Enlargement/reducing ring
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Obo Bettermann thread reduction fitting allows installers to adapt a larger threaded enclosure entry port down to a smaller metric cable gland size. This polyamide reducer maintains system integrity and ingress protection across varying hardware layouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 0,034 kg CO2e / 1 Piece
- Colour: Light grey; RAL 7035
- Dimension: M32-M25
- Dimension E: 40 mm
- Dimension L: 16 mm
- Dimension L1: 10 mm
- Dimension L2: 6 mm
- Dimension L3: 16 mm
- explosion-proof: no
- Halogen-free: yes
- Material: Polyamide
- Nickel-plated: no
- Thread dimension, metric, external: 32
- Thread dimension, metric, internal: 25
- Thread length: 10 mm
- Thread type: External thread: Metric
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,034 kg CO2e / 1 Piece |
|---|---|
| Colour | Light grey; RAL 7035 |
| Dimension | M32-M25 |
| Dimension E | 40 mm |
| Dimension L | 16 mm |
| Dimension L1 | 10 mm |
| Dimension L2 | 6 mm |
| Dimension L3 | 16 mm |
| explosion-proof | no |
| Halogen-free | yes |
|---|---|
| Material | Polyamide |
| Nickel-plated | no |
| Thread dimension, metric, external | 32 |
| Thread dimension, metric, internal | 25 |
| Thread length | 10 mm |
| Thread type: External thread | Metric |
| Thread type: Internal thread | Metric |
| WAF | 36 |
