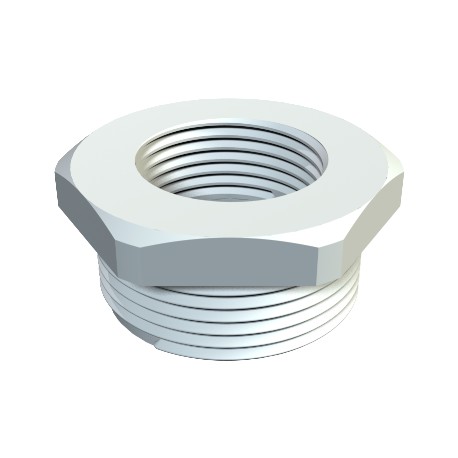

107 R M32-16 PA 2030634 OBO BETTERMANN Reduction , M32-M16, Light grey, 7035, Polyamide, PA
107 R M32-16 PA
2030634
OBO BETTERMANN
50 Pcs.
Reduction , M32-M16, Light grey, 7035, Polyamide, PA
Reduction, metric thread. Reduction with metric internal and external thread for mounting plastic cable glands on enclosures. Protection class IP54 without additional connecting seal. Protection class up to IP68 possible with additional connecting seal, e.g. O-ring or flat sealing ring.
Cables > Enlargement/reducing ring
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,042 kg CO2e / 1 Piece |
|---|---|
| Colour | Light grey; RAL 7035 |
| Dimension | M32-M16 |
| Dimension E | 40 mm |
| Dimension L | 16 mm |
| Dimension L1 | 10 mm |
| Dimension L2 | 6 mm |
| Dimension L3 | 16 mm |
| explosion-proof | no |
| Halogen-free | yes |
|---|---|
| Material | Polyamide |
| Nickel-plated | no |
| Thread dimension, metric, external | 32 |
| Thread dimension, metric, internal | 16 |
| Thread length | 10 mm |
| Thread type: External thread | Metric |
| Thread type: Internal thread | Metric |
| WAF | 36 |
