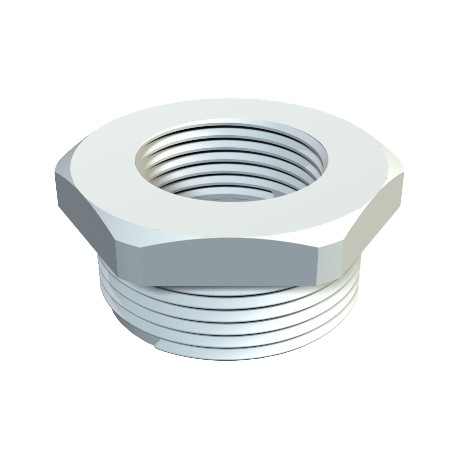

OBO BETTERMANN 107 R M25-16 PA 107 R M25-16 PA 2030626 OBO BETTERMANN Reduction , M25-M16, Light grey, 7035, Polyamide, PA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

107 R M25-16 PA 2030626 OBO BETTERMANN Reduction , M25-M16, Light grey, 7035, Polyamide, PA

107 R M25-16 PA

2030626

OBO BETTERMANN

100 Pcs.

Reduction , M25-M16, Light grey, 7035, Polyamide, PA Reduction, metric thread. Reduction with metric internal and external thread for mounting plastic cable glands on enclosures. Protection class IP54 without additional connecting seal. Protection class up to IP68 possible with additional connecting seal, e.g. O-ring or flat sealing ring.

Cables > Enlargement/reducing ring
Gls Plastic

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This reduction component, Obo Bettermann 107 R M25-16 PA, functions as a specialized threaded adapter for adapting cable gland entries in junction enclosures and automation hardware. Engineers use such parts to achieve precise mechanical compatibility when integrating mismatched metric thread sizes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0272 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL: 7035
  • Dimension: M25-M16
  • Dimension E: 32 mm
  • Dimension L: 14 mm
  • Dimension L1: 8 mm
  • Dimension L2: 6 mm
  • Dimension L3: 14 mm
  • explosion-proof: no
  • Halogen-free: yes
  • Material: Polyamide
  • Nickel-plated: no
  • Thread dimension, metric, external: 25
  • Thread dimension, metric, internal: 16
  • Thread length: 8 mm
  • Thread type: External thread: Metric

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,0272 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
DimensionM25-M16
Dimension E32 mm
Dimension L14 mm
Dimension L18 mm
Dimension L26 mm
Dimension L314 mm
explosion-proofno
Halogen-freeyes
MaterialPolyamide
Nickel-platedno
Thread dimension, metric, external25
Thread dimension, metric, internal16
Thread length8 mm
Thread type: External threadMetric
Thread type: Internal threadMetric
WAF29
