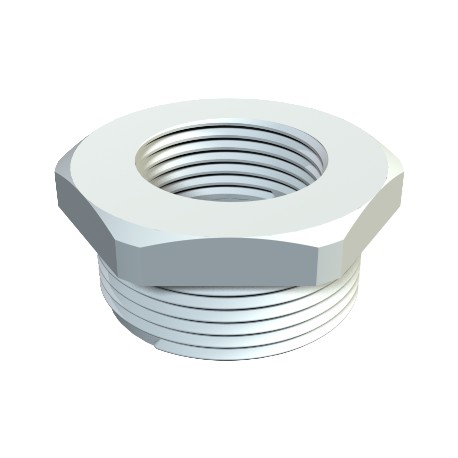

107 R M25-12 PA 2030624 OBO BETTERMANN Reduction , M25-M12, Light grey, 7035, Polyamide, PA
107 R M25-12 PA
2030624
OBO BETTERMANN
100 Pcs.
Cables > Enlargement/reducing ring
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Offering a reliable metric transition, the Obo Bettermann 107 R M25-12 PA reduction adapter bridges the gap between varying thread diameters on electrical enclosures. Such parts are vital for correct cable management and housing integrity in industrial wiring setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 0,033 kg CO2e / 1 Piece
- Colour: Light grey
- RAL: 7035
- Dimension: M25-M12
- Dimension E: 32 mm
- Dimension L: 14 mm
- Dimension L1: 8 mm
- Dimension L2: 6 mm
- Dimension L3: 14 mm
- explosion-proof: no
- Halogen-free: yes
- Material: Polyamide
- Nickel-plated: no
- Thread dimension, metric, external: 25
- Thread dimension, metric, internal: 12
- Thread length: 8 mm
- Thread type: External thread: Metric
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,033 kg CO2e / 1 Piece |
|---|---|
| Colour | Light grey; RAL 7035 |
| Dimension | M25-M12 |
| Dimension E | 32 mm |
| Dimension L | 14 mm |
| Dimension L1 | 8 mm |
| Dimension L2 | 6 mm |
| Dimension L3 | 14 mm |
| explosion-proof | no |
| Halogen-free | yes |
|---|---|
| Material | Polyamide |
| Nickel-plated | no |
| Thread dimension, metric, external | 25 |
| Thread dimension, metric, internal | 12 |
| Thread length | 8 mm |
| Thread type: External thread | Metric |
| Thread type: Internal thread | Metric |
| WAF | 29 |
