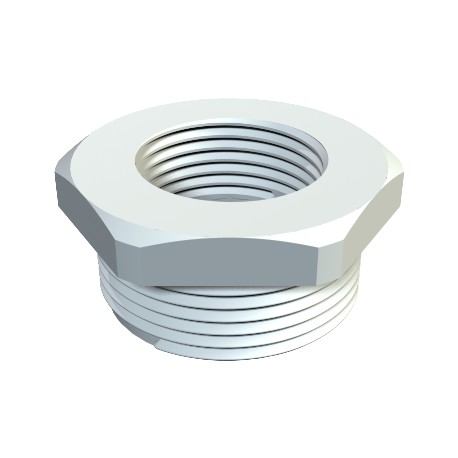

OBO BETTERMANN 107 R M20-16 PA 107 R M20-16 PA 2030619 OBO BETTERMANN Reduction , M20-M16, Light grey, 7035, Polyamide, PA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

107 R M20-16 PA 2030619 OBO BETTERMANN Reduction , M20-M16, Light grey, 7035, Polyamide, PA

107 R M20-16 PA

2030619

OBO BETTERMANN

100 Pcs.

Reduction , M20-M16, Light grey, 7035, Polyamide, PA Reduction, metric thread. Reduction with metric internal and external thread for mounting plastic cable glands on enclosures. Protection class IP54 without additional connecting seal. Protection class up to IP68 possible with additional connecting seal, e.g. O-ring or flat sealing ring.

Cables > Enlargement/reducing ring
Gls Plastic

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Compact polyamide reduction fittings enable technicians to downscale metric threaded entries seamlessly on standard industrial enclosures. Their insulating properties make them ideal for general electrical installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0107 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL 7035:
  • Dimension: M20-M16
  • Dimension E: 26,5 mm
  • Dimension L: 12 mm
  • Dimension L1: 8 mm
  • Dimension L2: 4 mm
  • Dimension L3: 12 mm
  • explosion-proof: no
  • Halogen-free: yes
  • Material: Polyamide
  • Nickel-plated: no
  • Thread dimension, metric, external: 20
  • Thread dimension, metric, internal: 16
  • Thread length: 8 mm
  • Thread type: External thread: Metric

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,0107 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
DimensionM20-M16
Dimension E26,5 mm
Dimension L12 mm
Dimension L18 mm
Dimension L24 mm
Dimension L312 mm
explosion-proofno
Halogen-freeyes
MaterialPolyamide
Nickel-platedno
Thread dimension, metric, external20
Thread dimension, metric, internal16
Thread length8 mm
Thread type: External threadMetric
Thread type: Internal threadMetric
WAF24
