View larger
Images are for illustrative purposes only. Please refer to data sheet for details

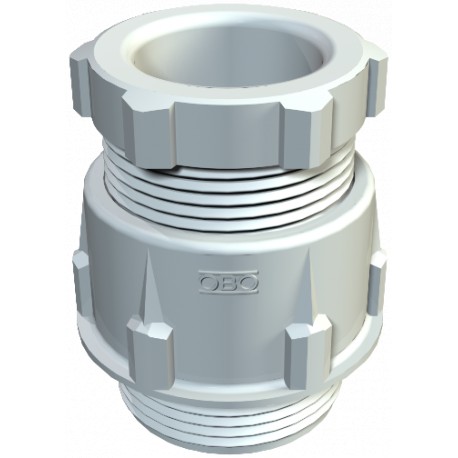

106 PG9 2036096 OBO BETTERMANN Cable gland , PG9, Light grey, 7035, Polystyrene, PS
106 PG9
2036096
OBO BETTERMANN
50 Pcs.
Cable gland , PG9, Light grey, 7035, Polystyrene, PS
Cone cable gland, PG thread, light grey. Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring.PG connection thread in accordance with DIN 40430.Protection rating: with connection thread sealing ring IP65, without connection thread sealing ring IP54.Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.Shock-resistant
Cables > Cable gland
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0162 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Dimension | PG9 |
| Dimension D1 | 7 mm |
| Dimension D2 | 21,5 mm |
| Dimension D3 | 10,5 mm |
| Dimension D4 | 11 mm |
| Dimension G | Pg9 mm |
| Dimension L max. | 25 mm |
| Dimension L1 | 8 mm |
| Dimension L2 | 14 mm |
| Dimension L3 | 5 mm |
| Dimension L4 | 9 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| For Ex zone | Without |
| For Ex zone dust | Without |
| For Ex zone gas | Without |
| Halogen-free | yes |
| Height | 30 mm |
|---|---|
| Impact-resistant | no |
| Length | 21,5 mm |
| Material | Polystyrene |
| Nominal thread size | 9 |
| Protection rating | IP65 |
| Sealing area D, max. | 7 mm |
| Sealing area D, min. | 4,5 mm |
| Sealing insert, multiple | no |
| Splittable gland | no |
| Strain relief option | no |
| Thread | Pg 9 |
| Thread length | 8 mm |
| Thread type | PG |
| Type of seal | Sealing ring |
| Version for | Straight |
| WAF 1 | 19 mm |
| WAF 2 | 16 mm |
| Width | 21,5 mm |
| With locknut | no |
