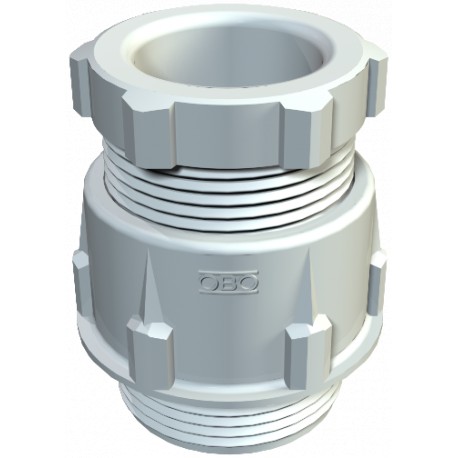

106 PG42 2036428 OBO BETTERMANN Cable gland , PG42, Light grey, 7035, Polystyrene, PS
106 PG42
2036428
OBO BETTERMANN
5 Pcs.
Cable gland , PG42, Light grey, 7035, Polystyrene, PS
Cable gland 106 PG42, PG42 Polystyrene, PS,
Conical cable gland, PG thread, light grey. Standard cable gland, form A according to DIN 46320 with single packing made of NR/SBR. PG connection thread according to DIN 40430. Degree of protection: IP65 with connection thread sealing gasket, IP54 without connection thread sealing gasket. Note: Moderately tighten polystyrene cable glands due to the danger of cracks forming due to stress.
Cables > Cable gland
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring.
PG connection thread in accordance with DIN 40430.
Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP54.
Note: only tighten polystyrene cable glands cookies on account of the risk of stress crack formation.
PG connection thread in accordance with DIN 40430.
Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP54.
Note: only tighten polystyrene cable glands cookies on account of the risk of stress crack formation.
| Feature Name | Feature Value |
|---|---|
| Thread type (EF001758) | PG |
| Nominal thread size metric/PG (EF007839) | 42 |
| Thread length (EF000368) | 13 mm |
| Suitable for cable diameter (EF005466) | 30 mm |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polystyrene |
| Halogen free (EF000025) | Yes |
| Degree of protection (IP) (EF005474) | IP65 |
| Shock resistant (EF000084) | No |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Bend radius protection/trumpet flare (EF000734) | No |
| With locknut (EF005049) | No |
| Model (EF000010) | Straight |
| Multi seal area (EF005004) | No |
| With strain relief (EF000878) | No |
| Type of sealing (EF001217) | EV009696 |
| Separable screw gland (EF005337) | No |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
