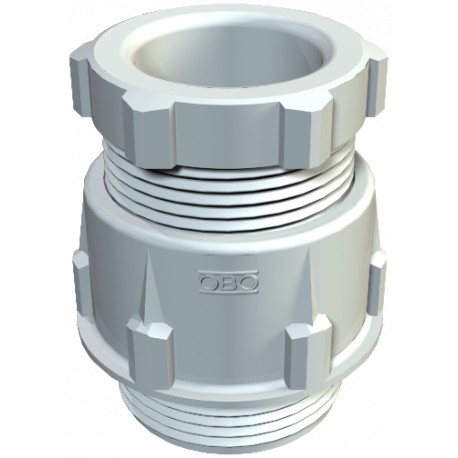

106 PG29 2036290 OBO BETTERMANN Cable gland , PG29, Light grey, 7035, Polystyrene, PS
106 PG29
2036290
OBO BETTERMANN
10 Pcs.
Cables > Cable gland
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Obo Bettermann 106 PG29 cable gland is a large-diameter entry fitting utilized for routing heavy-duty cables safely into enclosures, junction boxes, and machinery housings. Such components relieve mechanical tension on terminal connections and maintain the integrity of the cabinet enclosure against environmental elements. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend protection: no
- CO2 Footprint (GWP) Cradle-to-Gate: 0,1438 kg CO2e / 1 Piece
- Colour: Light grey
- RAL: 7035
- Dimension: PG29
- Dimension D1: 25 mm
- Dimension D2: 47,5 mm
- Dimension D3: 30 mm
- Dimension D4: 27,5 mm
- Dimension G: Pg29 mm
- Dimension L max.: 42 mm
- Dimension L1: 11 mm
- Dimension L2: 20,5 mm
- Dimension L3: 8 mm
- Dimension L4: 18 mm
- explosion-proof: no
- Fibre-glass reinforced: no
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1438 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Dimension | PG29 |
| Dimension D1 | 25 mm |
| Dimension D2 | 47,5 mm |
| Dimension D3 | 30 mm |
| Dimension D4 | 27,5 mm |
| Dimension G | Pg29 mm |
| Dimension L max. | 42 mm |
| Dimension L1 | 11 mm |
| Dimension L2 | 20,5 mm |
| Dimension L3 | 8 mm |
| Dimension L4 | 18 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| For Ex zone | Without |
| For Ex zone dust | Without |
| For Ex zone gas | Without |
| Halogen-free | yes |
| Height | 50 mm |
|---|---|
| Impact-resistant | no |
| Length | 47,5 mm |
| Material | Polystyrene |
| Nominal thread size | 29 |
| Protection rating | IP65 |
| Sealing area D, max. | 25 mm |
| Sealing area D, min. | 18 mm |
| Sealing insert, multiple | no |
| Splittable gland | no |
| Strain relief option | no |
| Thread | Pg 29 |
| Thread length | 11 mm |
| Thread type | PG |
| Type of seal | Sealing ring |
| Version for | Straight |
| WAF 1 | 42 mm |
| WAF 2 | 40 mm |
| Width | 47,5 mm |
| With locknut | no |
