View larger
Images are for illustrative purposes only. Please refer to data sheet for details

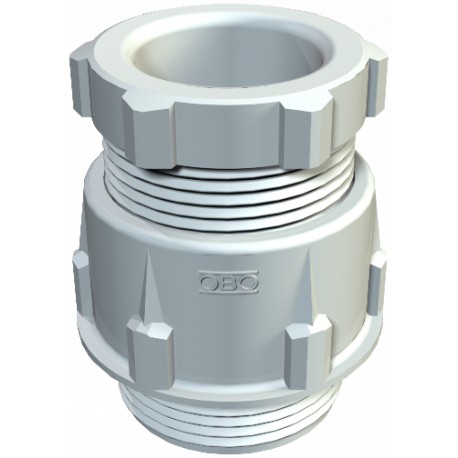

106 PG16 2036169 OBO BETTERMANN Cable gland , PG16, Light grey, 7035, Polystyrene, PS
106 PG16
2036169
OBO BETTERMANN
50 Pcs.
Cable gland , PG16, Light grey, 7035, Polystyrene, PS
Cable gland 106 PG16, PG16 Polystyrene, PS,
Cone cable gland, PG thread, light grey. Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring.PG connection thread in accordance with DIN 40430.Protection rating: with connection thread sealing ring IP65, without connection thread sealing ring IP54.Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.Shock-resistant
Cables > Cable gland
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0431 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Dimension | PG16 |
| Dimension D1 | 14 mm |
| Dimension D2 | 30 mm |
| Dimension D3 | 16 mm |
| Dimension D4 | 8 mm |
| Dimension G | Pg16 mm |
| Dimension L max. | 30 mm |
| Dimension L1 | 10 mm |
| Dimension L2 | 16,5 mm |
| Dimension L3 | 6 mm |
| Dimension L4 | 12 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| For Ex zone | Without |
| For Ex zone dust | Without |
| For Ex zone gas | Without |
| Halogen-free | yes |
| Height | 39 mm |
|---|---|
| Impact-resistant | no |
| Length | 30 mm |
| Material | Polystyrene |
| Nominal thread size | 16 |
| Protection rating | IP65 |
| Sealing area D, max. | 14 mm |
| Sealing area D, min. | 10 mm |
| Sealing insert, multiple | no |
| Splittable gland | no |
| Strain relief option | no |
| Thread | Pg 16 |
| Thread length | 10 mm |
| Thread type | PG |
| Type of seal | Sealing ring |
| Version for | Straight |
| WAF 1 | 27 mm |
| WAF 2 | 23 mm |
| Width | 30 mm |
| With locknut | no |
| Feature Name | Feature Value |
|---|---|
| Thread type (EF001758) | PG |
| Nominal thread size metric/PG (EF007839) | 16 |
| Thread length (EF000368) | 10 mm |
| Suitable for cable diameter (EF005466) | 10 mm |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polystyrene |
| Halogen free (EF000025) | Yes |
| Degree of protection (IP) (EF005474) | IP65 |
| Shock resistant (EF000084) | No |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Bend radius protection/trumpet flare (EF000734) | No |
| With locknut (EF005049) | No |
| Model (EF000010) | Straight |
| Multi seal area (EF005004) | No |
| With strain relief (EF000878) | No |
| Type of sealing (EF001217) | EV009696 |
| Separable screw gland (EF005337) | No |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
