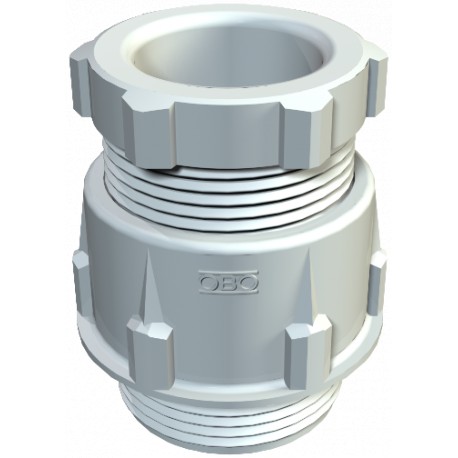

OBO BETTERMANN 106 PG13.5 106 PG13.5 2036134 OBO BETTERMANN Cable gland , PG13,5, Light grey, 7035, Polystyrene, PS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

106 PG13.5 2036134 OBO BETTERMANN Cable gland , PG13,5, Light grey, 7035, Polystyrene, PS

106 PG13.5

2036134

OBO BETTERMANN

50 Pcs.

Cable gland , PG13,5, Light grey, 7035, Polystyrene, PS Cone cable gland, PG thread, light grey. Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring.PG connection thread in accordance with DIN 40430.Protection rating: with connection thread sealing ring IP65, without connection thread sealing ring IP54.Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.Shock-resistant

Cables > Cable gland
Gls Plastic

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Manufactured from polystyrene, the 106 PG13.5 cable gland from Obo Bettermann provides standard mechanical retention and environmental sealing for control cabinet wire entries. Polystyrene glands are lightweight and cost-effective solutions for general commercial and light industrial switchgear builds. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend protection: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0348 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL 7035:
  • Dimension: PG13,5
  • Dimension D1: 13 mm
  • Dimension D2: 27 mm
  • Dimension D3: 13,4 mm
  • Dimension D4: 13,5 mm
  • Dimension G: Pg13,5 mm
  • Dimension L max.: 28 mm
  • Dimension L1: 9 mm
  • Dimension L2: 16 mm
  • Dimension L3: 5 mm
  • Dimension L4: 10,8 mm
  • explosion-proof: no
  • Fibre-glass reinforced: no

More info

▲
Bend protectionno
CO2 Footprint (GWP) Cradle-to-Gate0,0348 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
DimensionPG13,5
Dimension D113 mm
Dimension D227 mm
Dimension D313,4 mm
Dimension D413,5 mm
Dimension GPg13,5 mm
Dimension L max.28 mm
Dimension L19 mm
Dimension L216 mm
Dimension L35 mm
Dimension L410,8 mm
explosion-proofno
Fibre-glass reinforcedno
For Ex zoneWithout
For Ex zone dustWithout
For Ex zone gasWithout
Halogen-freeyes
Height37 mm
Impact-resistantno
Length27 mm
MaterialPolystyrene
Nominal thread size13,5
Protection ratingIP65
Sealing area D, max.13 mm
Sealing area D, min.9 mm
Sealing insert, multipleno
Splittable glandno
Strain relief optionno
ThreadPg 13,5
Thread length9 mm
Thread typePG
Type of sealSealing ring
Version forStraight
WAF 124 mm
WAF 221 mm
Width27 mm
With locknutno
