View larger
Images are for illustrative purposes only. Please refer to data sheet for details

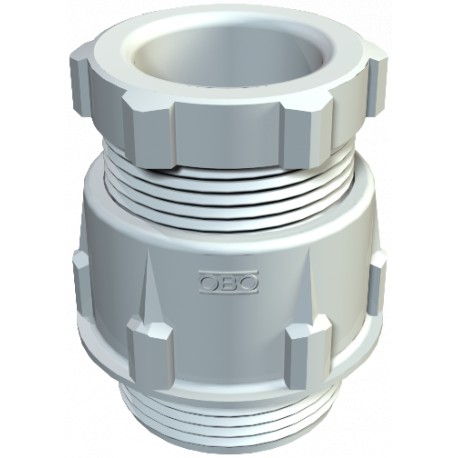

106 PG11 2036118 OBO BETTERMANN Cable gland , PG11, Light grey, 7035, Polystyrene, PS
106 PG11
2036118
OBO BETTERMANN
50 Pcs.
Cable gland , PG11, Light grey, 7035, Polystyrene, PS
Cone cable gland, PG thread, light grey. Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring.PG connection thread in accordance with DIN 40430.Protection rating: with connection thread sealing ring IP65, without connection thread sealing ring IP54.Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.Shock-resistant
Cables > Cable gland
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0299 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Dimension | PG11 |
| Dimension D1 | 9 mm |
| Dimension D2 | 25 mm |
| Dimension D3 | 13 mm |
| Dimension D4 | 13 mm |
| Dimension G | Pg11 mm |
| Dimension L max. | 27 mm |
| Dimension L1 | 8 mm |
| Dimension L2 | 15 mm |
| Dimension L3 | 5 mm |
| Dimension L4 | 10 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| For Ex zone | Without |
| For Ex zone dust | Without |
| For Ex zone gas | Without |
| Halogen-free | yes |
| Height | 33 mm |
|---|---|
| Impact-resistant | no |
| Length | 25 mm |
| Material | Polystyrene |
| Nominal thread size | 11 |
| Protection rating | IP65 |
| Sealing area D, max. | 10 mm |
| Sealing area D, min. | 5,5 mm |
| Sealing insert, multiple | no |
| Splittable gland | no |
| Strain relief option | no |
| Thread | Pg 11 |
| Thread length | 8 mm |
| Thread type | PG |
| Type of seal | Sealing ring |
| Version for | Straight |
| WAF 1 | 22 mm |
| WAF 2 | 19 mm |
| Width | 25 mm |
| With locknut | no |
