View larger
Images are for illustrative purposes only. Please refer to data sheet for details

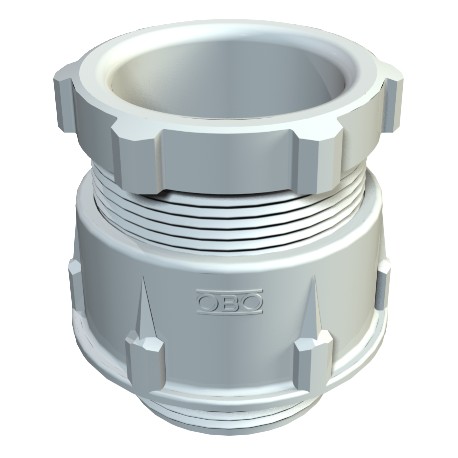

106 M16 PS 2035324 OBO BETTERMANN Cable gland , M16, Light grey, 7035, Polystyrene, PS
106 M16 PS
2035324
OBO BETTERMANN
50 Pcs.
Cable gland , M16, Light grey, 7035, Polystyrene, PS
Cable gland 106 M16 PS, M16 Polystyrene, PS,
Cone cable gland, metric thread, light grey. Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring with metric connection thread to IEC 423.Protection rating: with connection thread sealing ring IP65, without connection thread sealing ring IP54.Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.Shock-resistant
Cables > Cable gland
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0229 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Dimension | M16 |
| Dimension D1 | 7 mm |
| Dimension D2 | 21,5 mm |
| Dimension D3 | 10,2 mm |
| Dimension D4 | 10 mm |
| Dimension G | M16x1,5 mm |
| Dimension L max. | 25 mm |
| Dimension L1 | 8 mm |
| Dimension L2 | 14 mm |
| Dimension L3 | 5 mm |
| Dimension L4 | 9 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| For Ex zone | Without |
| For Ex zone dust | Without |
| For Ex zone gas | Without |
| Halogen-free | yes |
| Height | 30 mm |
|---|---|
| Impact-resistant | yes |
| Length | 21,5 mm |
| Material | Polystyrene |
| Nominal thread size | 16 |
| Protection rating | IP65 |
| Sealing area D, max. | 7 mm |
| Sealing area D, min. | 4,5 mm |
| Sealing insert, multiple | no |
| Splittable gland | no |
| Strain relief option | no |
| Thread | M16 x 1,5 |
| Thread length | 8 mm |
| Thread type | Metric |
| Type of seal | Sealing ring |
| Version for | Straight |
| WAF 1 | 19 mm |
| WAF 2 | 16 mm |
| Width | 21,5 mm |
| With locknut | no |
| Feature Name | Feature Value |
|---|---|
| Thread type (EF001758) | Metric |
| Nominal thread size metric/PG (EF007839) | 16 |
| Thread length (EF000368) | 8 mm |
| Suitable for cable diameter (EF005466) | 4.5 mm |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polystyrene |
| Halogen free (EF000025) | Yes |
| Degree of protection (IP) (EF005474) | IP65 |
| Shock resistant (EF000084) | Yes |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Bend radius protection/trumpet flare (EF000734) | No |
| With locknut (EF005049) | No |
| Model (EF000010) | Straight |
| Multi seal area (EF005004) | No |
| With strain relief (EF000878) | No |
| Type of sealing (EF001217) | EV009696 |
| Separable screw gland (EF005337) | No |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
