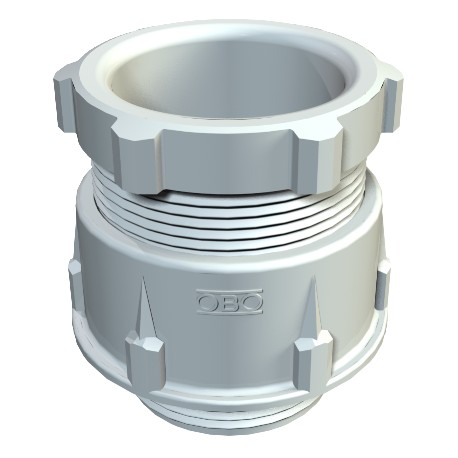

OBO BETTERMANN 106 M 50 PS 106 M 50 PS 2035375 OBO BETTERMANN Cable gland , M50, Light grey, 7035, Polystyrene, PS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

106 M 50 PS 2035375 OBO BETTERMANN Cable gland , M50, Light grey, 7035, Polystyrene, PS

106 M 50 PS

2035375

OBO BETTERMANN

5 Pcs.

Cable gland , M50, Light grey, 7035, Polystyrene, PS Cone cable gland, metric thread, light grey. Standard cable gland, shape A, to DIN 46320 with simple NR/SBR sealing ring with metric connection thread to IEC 423.Protection rating: with connection thread sealing ring IP65, without connection thread sealing ring IP54.Note: Only tighten polystyrene cable glands lightly due to the risk of stress crack formation.Shock-resistant

Cables > Cable gland
Gls Plastic

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Obo Bettermann 106 M 50 PS cable gland offers a polystyrene build suitable for standard commercial and industrial routing needs. Such hardware routes electrical cabling safely through enclosures while keeping dust and moisture out.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend protection: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,2979 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL: 7035
  • Dimension: M50
  • Dimension D1: 38 mm
  • Dimension D2: 68 mm
  • Dimension D3: 44,5 mm
  • Dimension D4: 40,5 mm
  • Dimension G: M50x1,5 mm
  • Dimension L max.: 48 mm
  • Dimension L1: 13 mm
  • Dimension L2: 27 mm
  • Dimension L3: 9 mm
  • Dimension L4: 18,5 mm
  • explosion-proof: no
  • Fibre-glass reinforced: no

More info

▲
Bend protectionno
CO2 Footprint (GWP) Cradle-to-Gate0,2979 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
DimensionM50
Dimension D138 mm
Dimension D268 mm
Dimension D344,5 mm
Dimension D440,5 mm
Dimension GM50x1,5 mm
Dimension L max.48 mm
Dimension L113 mm
Dimension L227 mm
Dimension L39 mm
Dimension L418,5 mm
explosion-proofno
Fibre-glass reinforcedno
For Ex zoneWithout
For Ex zone dustWithout
For Ex zone gasWithout
Halogen-freeyes
Height59 mm
Impact-resistantyes
Length65 mm
MaterialPolystyrene
Nominal thread size50
Protection ratingIP65
Sealing area D, max.38 mm
Sealing area D, min.30 mm
Sealing insert, multipleno
Splittable glandno
Strain relief optionno
ThreadM50 x 1,5
Thread length13 mm
Thread typeMetric
Type of sealSealing ring
Version forStraight
WAF 160 mm
WAF 255 mm
Width68 mm
With locknutno
