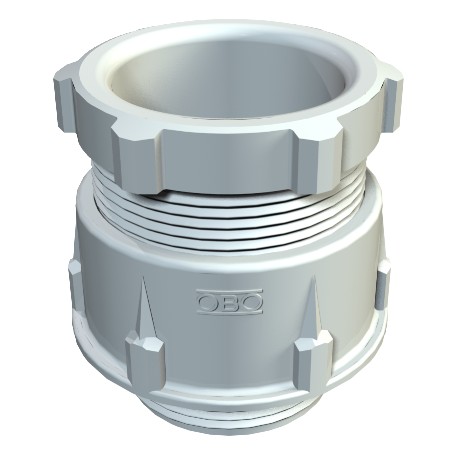

106 M 40 PS 2035367 OBO BETTERMANN Cable gland , M40, Light grey, 7035, Polystyrene, PS
106 M 40 PS
2035367
OBO BETTERMANN
10 Pcs.
Cables > Cable gland
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Obo Bettermann 106 M 40 PS cable gland is a large metric entry component manufactured from polystyrene, designed for routing bulky cables into distribution boards and junction boxes. It provides essential strain relief and basic environmental protection for standard industrial enclosures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend protection: no
- CO2 Footprint (GWP) Cradle-to-Gate: 0,2321 kg CO2e / 1 Piece
- Colour: Light grey
- RAL: 7035
- Dimension: M40
- Dimension D1: 33 mm
- Dimension D2: 60 mm
- Dimension D3: 38,4 mm
- Dimension D4: 33 mm
- Dimension G: M40x1,5 mm
- Dimension L max.: 43 mm
- Dimension L1: 12 mm
- Dimension L2: 24 mm
- Dimension L3: 8 mm
- Dimension L4: 17 mm
- explosion-proof: no
- Fibre-glass reinforced: no
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2321 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Dimension | M40 |
| Dimension D1 | 33 mm |
| Dimension D2 | 60 mm |
| Dimension D3 | 38,4 mm |
| Dimension D4 | 33 mm |
| Dimension G | M40x1,5 mm |
| Dimension L max. | 43 mm |
| Dimension L1 | 12 mm |
| Dimension L2 | 24 mm |
| Dimension L3 | 8 mm |
| Dimension L4 | 17 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| For Ex zone | Without |
| For Ex zone dust | Without |
| For Ex zone gas | Without |
| Halogen-free | yes |
| Height | 52,5 mm |
|---|---|
| Impact-resistant | yes |
| Length | 58 mm |
| Material | Polystyrene |
| Nominal thread size | 40 |
| Protection rating | IP65 |
| Sealing area D, max. | 33 mm |
| Sealing area D, min. | 25 mm |
| Sealing insert, multiple | no |
| Splittable gland | no |
| Strain relief option | no |
| Thread | M40 x 1,5 |
| Thread length | 12 mm |
| Thread type | Metric |
| Type of seal | Sealing ring |
| Version for | Straight |
| WAF 1 | 53 mm |
| WAF 2 | 50 mm |
| Width | 61 mm |
| With locknut | no |
