106 M 25 PS 2035340 OBO BETTERMANN Cable gland , M25, Light grey, 7035, Polystyrene, PS
106 M 25 PS
2035340
OBO BETTERMANN
50 Pcs.
Cables > Cable gland
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

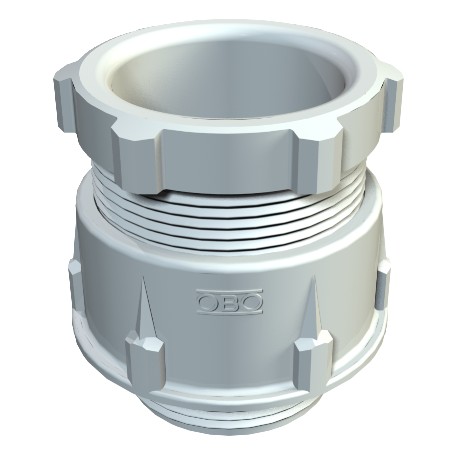

Manufactured from lightweight polystyrene, the Obo Bettermann 106 M 25 PS Cable gland offers a reliable and economical entry point for standard wiring routed into lightweight distribution boxes or plastic enclosures. These components safeguard internal connections from dust and casual contact.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend protection: no
- CO2 Footprint (GWP) Cradle-to-Gate: 0,0419 kg CO2e / 1 Piece
- Colour: Light grey
- RAL 7035:
- Dimension: M25
- Dimension D1: 14 mm
- Dimension D2: 30 mm
- Dimension D3: 15,8 mm
- Dimension D4: 16 mm
- Dimension G: M25x1,5 mm
- Dimension L max.: 30 mm
- Dimension L1: 10 mm
- Dimension L2: 16,5 mm
- Dimension L3: 6 mm
- Dimension L4: 12 mm
- explosion-proof: no
- Fibre-glass reinforced: no
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0419 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Dimension | M25 |
| Dimension D1 | 14 mm |
| Dimension D2 | 30 mm |
| Dimension D3 | 15,8 mm |
| Dimension D4 | 16 mm |
| Dimension G | M25x1,5 mm |
| Dimension L max. | 30 mm |
| Dimension L1 | 10 mm |
| Dimension L2 | 16,5 mm |
| Dimension L3 | 6 mm |
| Dimension L4 | 12 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| For Ex zone | Without |
| For Ex zone dust | Without |
| For Ex zone gas | Without |
| Halogen-free | yes |
| Height | 39 mm |
|---|---|
| Impact-resistant | yes |
| Length | 30 mm |
| Material | Polystyrene |
| Nominal thread size | 25 |
| Protection rating | IP65 |
| Sealing area D, max. | 14 mm |
| Sealing area D, min. | 10 mm |
| Sealing insert, multiple | no |
| Splittable gland | no |
| Strain relief option | no |
| Thread | M25 x 1,5 |
| Thread length | 10 mm |
| Thread type | Metric |
| Type of seal | Sealing ring |
| Version for | Straight |
| WAF 1 | 27 mm |
| WAF 2 | 23 mm |
| Width | 30 mm |
| With locknut | no |
