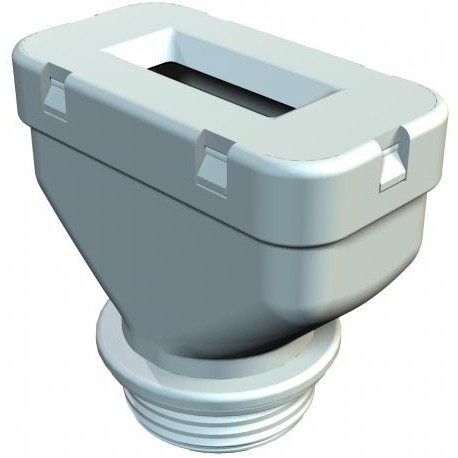

106 FL M32 9 39 2013018 OBO BETTERMANN Flat cable threaded connection , M32, Stone grey, 7030, Polyethylene,..
106 FL M32 9 39
2013018
OBO BETTERMANN
15 Pcs.
Cables > Cable gland
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 106 FL M32 9 39 2013018 Obo Bettermann flat cable threaded connection , M32, Stone grey, 7030, Polyethylene is a specialized cable gland engineered to route and secure flat ribbon cables into housings while keeping out environmental hazards.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Thread type (EF001758): Metric
- Material (EF002169): Plastic
- Material quality (EF001257): Polyethylene (PE)
- Degree of protection (IP) (EF005474): IP31
- Shock resistant (EF000084): No
- Colour (EF000007): Grey
- RAL-number (EF000116): 7030
- Bend radius protection/trumpet flare (EF000734): Yes
- With locknut (EF005049): No
- Model (EF000010): Straight
- Multi seal area (EF005004): No
- Flat cable coupling (EF004685): Yes
- With strain relief (EF000878): No
- Type of sealing (EF001217): EV009696
- Explosion-tested version (EF004191): No
More info
▲| Bend protection | yes |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1036 kg CO2e / 1 Piece |
| Colour | Stone grey; RAL 7030 |
| Dimension | M32 |
| Dimension A | 30 mm |
| Dimension B | 56 mm |
| Dimension D | 46 mm |
| Dimension G | M32 mm |
| Dimension L | 59 mm |
| Dimension L1 | 13 mm |
| Dimension L2 | 46 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flat cable gland | yes |
| Flat cable/width, max. | 39 mm |
| Flat cable/width, min. | 36 mm |
|---|---|
| Flat cables/thickness, max. | 9 mm |
| Flat cables/thickness, min. | 7 mm |
| For Ex zone | Without |
| Impact-resistant | no |
| Material | Polyethylene |
| Protection rating | IP31 |
| Sealing insert, multiple | no |
| Strain relief option | no |
| Thread | M32 |
| Thread type | Metric |
| Type of seal | Sealing ring |
| Version for | Straight |
| With locknut | no |
