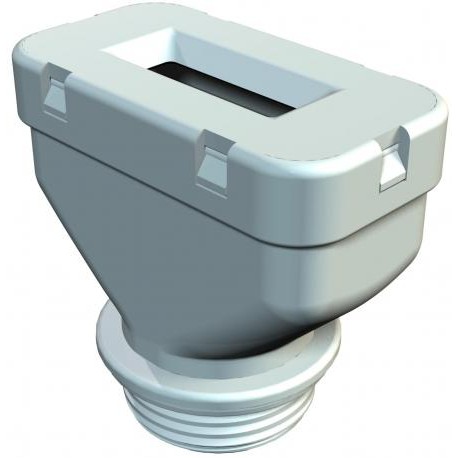

106 FL M32 10 31 2013020 OBO BETTERMANN Flat cable threaded connection , M32, Stone grey, 7030, Polyethylene..
106 FL M32 10 31
2013020
OBO BETTERMANN
15 Pcs.
Cables > Cable gland
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Obo Bettermann 106 FL M32 10 31 flat cable threaded connection routes specialized ribbon or flat conductors safely into machinery enclosures. Designed specifically for flat cabling geometries, this polyethylene fitting maintains structured organization and basic environmental defense. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Thread type (EF001758): Metric
- Material (EF002169): Plastic
- Material quality (EF001257): Polyethylene (PE)
- Degree of protection (IP) (EF005474): IP31
- Shock resistant (EF000084): No
- Colour (EF000007): Grey
- RAL-number (EF000116): 7030
- Bend radius protection/trumpet flare (EF000734): Yes
- With locknut (EF005049): No
- Model (EF000010): Straight
- Multi seal area (EF005004): No
- Flat cable coupling (EF004685): Yes
- With strain relief (EF000878): No
- Type of sealing (EF001217): EV009696
- Explosion-tested version (EF004191): No
More info
▲| Bend protection | yes |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1081 kg CO2e / 1 Piece |
| Colour | Stone grey; RAL 7030 |
| Dimension | M32 |
| Dimension A | 30 mm |
| Dimension B | 56 mm |
| Dimension D | 46 mm |
| Dimension G | M32 mm |
| Dimension L | 59 mm |
| Dimension L1 | 13 mm |
| Dimension L2 | 46 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flat cable gland | yes |
| Flat cable/width, max. | 31,5 mm |
| Flat cable/width, min. | 28,5 mm |
|---|---|
| Flat cables/thickness, max. | 10,5 mm |
| Flat cables/thickness, min. | 8,5 mm |
| For Ex zone | Without |
| Impact-resistant | no |
| Material | Polyethylene |
| Protection rating | IP31 |
| Sealing insert, multiple | no |
| Strain relief option | no |
| Thread | M32 |
| Thread type | Metric |
| Type of seal | Sealing ring |
| Version for | Straight |
| With locknut | no |
