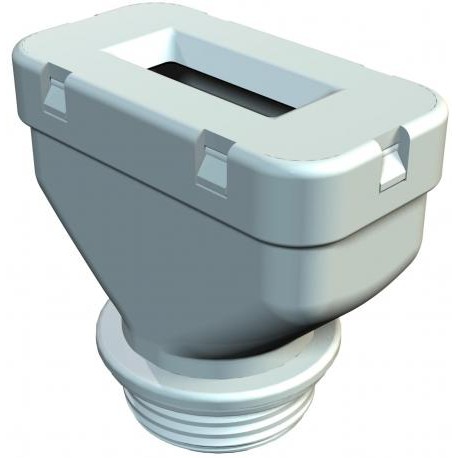

106 FL M32 10 29 2013019 OBO BETTERMANN Flat cable threaded connection , M32, Stone grey, 7030, Polyethylene..
106 FL M32 10 29
2013019
OBO BETTERMANN
15 Pcs.
Cables > Cable gland
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Managing ribbon cables and non-circular conduit entries is simplified with this 106 FL M32 10 29 flat cable threaded connection from Obo Bettermann. Specialized flat cable fittings provide customized internal geometry to properly seal wide bus or power conductors without pinching. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend protection: yes
- CO2 Footprint (GWP) Cradle-to-Gate: 0,1092 kg CO2e / 1 Piece
- Colour: Stone grey
- RAL: 7030
- Dimension: M32
- Dimension A: 30 mm
- Dimension B: 56 mm
- Dimension D: 46 mm
- Dimension G: M32 mm
- Dimension L: 59 mm
- Dimension L1: 13 mm
- Dimension L2: 46 mm
- explosion-proof: no
- Fibre-glass reinforced: no
- Flat cable gland: yes
- Flat cable/width, max.: 29 mm
- Flat cable/width, min.: 26 mm
More info
▲| Bend protection | yes |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1092 kg CO2e / 1 Piece |
| Colour | Stone grey; RAL 7030 |
| Dimension | M32 |
| Dimension A | 30 mm |
| Dimension B | 56 mm |
| Dimension D | 46 mm |
| Dimension G | M32 mm |
| Dimension L | 59 mm |
| Dimension L1 | 13 mm |
| Dimension L2 | 46 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flat cable gland | yes |
| Flat cable/width, max. | 29 mm |
| Flat cable/width, min. | 26 mm |
|---|---|
| Flat cables/thickness, max. | 10 mm |
| Flat cables/thickness, min. | 8 mm |
| For Ex zone | Without |
| Impact-resistant | no |
| Material | Polyethylene |
| Protection rating | IP31 |
| Sealing insert, multiple | no |
| Strain relief option | no |
| Thread | M32 |
| Thread type | Metric |
| Type of seal | Sealing ring |
| Version for | Straight |
| With locknut | no |
