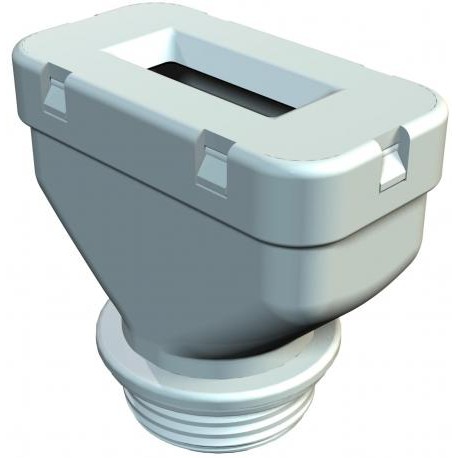

106 FL M25 9 22 2013008 OBO BETTERMANN Flat cable threaded connection , M25, Stone grey, 7030, Polyethylene,..
106 FL M25 9 22
2013008
OBO BETTERMANN
25 Pcs.
Cables > Cable gland
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Obo Bettermann 106 FL M25 9 22 flat cable threaded connection is specifically designed to route ribbon cables and flat conductors securely into junction boxes. Flat cable glands provide precise clamping profiles to maintain reliable environmental seals on specialized wiring.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Bend protection: yes
- CO2 Footprint (GWP) Cradle-to-Gate: 0,0809 kg CO2e / 1 Piece
- Colour: Stone grey
- RAL: 7030
- Dimension: M25
- Dimension A: 30 mm
- Dimension B: 56 mm
- Dimension D: 35 mm
- Dimension G: M25 mm
- Dimension L: 52 mm
- Dimension L1: 12 mm
- Dimension L2: 40 mm
- explosion-proof: no
- Fibre-glass reinforced: no
- Flat cable gland: yes
- Flat cable/width, max.: 22 mm
- Flat cable/width, min.: 19 mm
More info
▲| Bend protection | yes |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0809 kg CO2e / 1 Piece |
| Colour | Stone grey; RAL 7030 |
| Dimension | M25 |
| Dimension A | 30 mm |
| Dimension B | 56 mm |
| Dimension D | 35 mm |
| Dimension G | M25 mm |
| Dimension L | 52 mm |
| Dimension L1 | 12 mm |
| Dimension L2 | 40 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flat cable gland | yes |
| Flat cable/width, max. | 22 mm |
| Flat cable/width, min. | 19 mm |
|---|---|
| Flat cables/thickness, max. | 9 mm |
| Flat cables/thickness, min. | 7 mm |
| For Ex zone | Without |
| Impact-resistant | no |
| Material | Polyethylene |
| Protection rating | IP31 |
| Sealing insert, multiple | no |
| Strain relief option | no |
| Thread | M25 |
| Thread type | Metric |
| Type of seal | Sealing ring |
| Version for | Straight |
| With locknut | no |
