106 FL M25 14 40 2013013 OBO BETTERMANN Flat cable threaded connection , M25, Stone grey, 7030, Polyethylene..
106 FL M25 14 40
2013013
OBO BETTERMANN
25 Pcs.
Cables > Cable gland
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

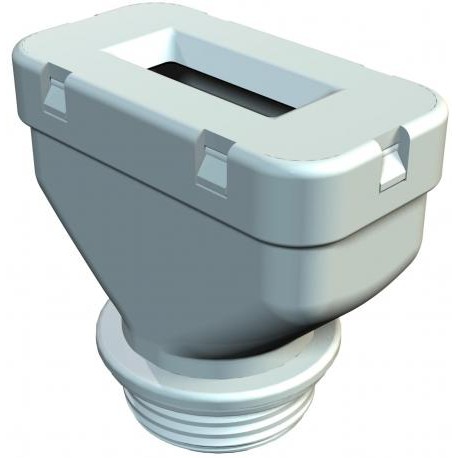

A specialized flat cable threaded connection, the Obo Bettermann 106 FL M25 14 40 2013013 OBO BETTERMANN Flat cable threaded connection safely guides ribbon or flat conductors into industrial enclosures while maintaining a secure hold. Such fittings prevent chafing and environmental exposure for specialized cabling infrastructure.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend protection: yes
- CO2 Footprint (GWP) Cradle-to-Gate: 0,0812 kg CO2e / 1 Piece
- Colour: Stone grey
- RAL 7030:
- Dimension: M25
- Dimension A: 30 mm
- Dimension B: 56 mm
- Dimension D: 35 mm
- Dimension G: M25 mm
- Dimension L: 52 mm
- Dimension L1: 12 mm
- Dimension L2: 40 mm
- explosion-proof: no
- Fibre-glass reinforced: no
- Flat cable gland: yes
- Flat cable/width, max.: 40 mm
- Flat cable/width, min.: 37 mm
More info
▲| Bend protection | yes |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0812 kg CO2e / 1 Piece |
| Colour | Stone grey; RAL 7030 |
| Dimension | M25 |
| Dimension A | 30 mm |
| Dimension B | 56 mm |
| Dimension D | 35 mm |
| Dimension G | M25 mm |
| Dimension L | 52 mm |
| Dimension L1 | 12 mm |
| Dimension L2 | 40 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flat cable gland | yes |
| Flat cable/width, max. | 40 mm |
| Flat cable/width, min. | 37 mm |
|---|---|
| Flat cables/thickness, max. | 14 mm |
| Flat cables/thickness, min. | 11 mm |
| For Ex zone | Without |
| Impact-resistant | no |
| Material | Polyethylene |
| Protection rating | IP31 |
| Sealing insert, multiple | no |
| Strain relief option | no |
| Thread | M25 |
| Thread type | Metric |
| Type of seal | Sealing ring |
| Version for | Straight |
| With locknut | no |
