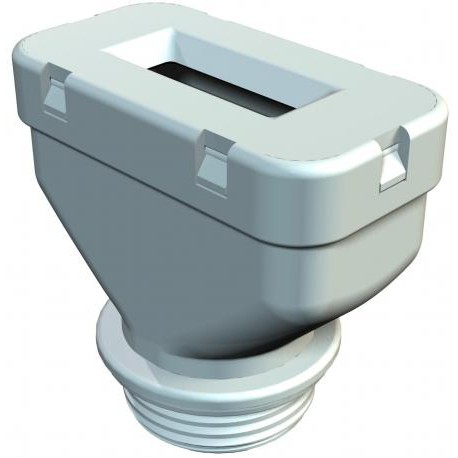

OBO BETTERMANN 106 FL M25 12 35 106 FL M25 12 35 2013012 OBO BETTERMANN Flat cable threaded connection , M25, Stone grey, 7030, Polyethylene.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

106 FL M25 12 35 2013012 OBO BETTERMANN Flat cable threaded connection , M25, Stone grey, 7030, Polyethylene..

106 FL M25 12 35

2013012

OBO BETTERMANN

25 Pcs.

Flat cable threaded connection , M25, Stone grey, 7030, Polyethylene, PE Flat cable threaded connection, metric thread M25, stone grey. Flat-cable entry, choke-nipple design with metric connecting thread to IEC 432, protection rating IP31, with pre-mounted support sealing ring 107/F.

Cables > Cable gland
Gls Plastic

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built to accommodate non-circular profile conductors, the Obo Bettermann flat cable threaded connection 106 FL M25 12 35 ensures secure sealing for specialized wiring systems. Industrial machine builders apply these polyethylene entries to maintain tight environmental barriers around ribbon and bus cables. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend protection: yes
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0801 kg CO2e / 1 Piece
  • Colour: Stone grey
  • RAL: 7030
  • Dimension: M25
  • Dimension A: 30 mm
  • Dimension B: 56 mm
  • Dimension D: 35 mm
  • Dimension G: M25 mm
  • Dimension L: 52 mm
  • Dimension L1: 12 mm
  • Dimension L2: 40 mm
  • explosion-proof: no
  • Fibre-glass reinforced: no
  • Flat cable gland: yes
  • Flat cable/width, max.: 35 mm
  • Flat cable/width, min.: 31 mm

More info

▲
Bend protectionyes
CO2 Footprint (GWP) Cradle-to-Gate0,0801 kg CO2e / 1 Piece
ColourStone grey; RAL 7030
DimensionM25
Dimension A30 mm
Dimension B56 mm
Dimension D35 mm
Dimension GM25 mm
Dimension L52 mm
Dimension L112 mm
Dimension L240 mm
explosion-proofno
Fibre-glass reinforcedno
Flat cable glandyes
Flat cable/width, max.35 mm
Flat cable/width, min.31 mm
Flat cables/thickness, max.12 mm
Flat cables/thickness, min.9 mm
For Ex zoneWithout
Impact-resistantno
MaterialPolyethylene
Protection ratingIP31
Sealing insert, multipleno
Strain relief optionno
ThreadM25
Thread typeMetric
Type of sealSealing ring
Version forStraight
With locknutno
