View larger
Images are for illustrative purposes only. Please refer to data sheet for details

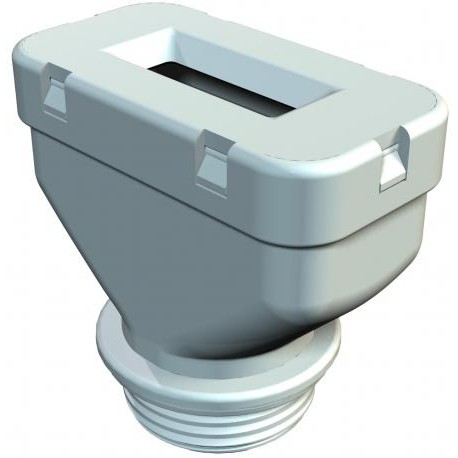

106 FL M25 10 31 2013011 OBO BETTERMANN Flat cable threaded connection , M25, Stone grey, 7030, Polyethylene..
106 FL M25 10 31
2013011
OBO BETTERMANN
25 Pcs.
Flat cable threaded connection , M25, Stone grey, 7030, Polyethylene, PE
Cable gland for flat cable 106 FL M25 10 31, M25 Polyethylene, PE,
Flat cable threaded connection, metric thread M25, stone grey. Flat-cable entry, choke-nipple design with metric connecting thread to IEC 432, protection rating IP31, with pre-mounted support sealing ring 107/F.
Cables > Cable gland
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend protection | yes |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0797 kg CO2e / 1 Piece |
| Colour | Stone grey; RAL 7030 |
| Dimension | M25 |
| Dimension A | 30 mm |
| Dimension B | 56 mm |
| Dimension D | 35 mm |
| Dimension G | M25 mm |
| Dimension L | 52 mm |
| Dimension L1 | 12 mm |
| Dimension L2 | 40 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flat cable gland | yes |
| Flat cable/width, max. | 31,5 mm |
| Flat cable/width, min. | 28,5 mm |
|---|---|
| Flat cables/thickness, max. | 10,5 mm |
| Flat cables/thickness, min. | 8,5 mm |
| For Ex zone | Without |
| Impact-resistant | no |
| Material | Polyethylene |
| Protection rating | IP31 |
| Sealing insert, multiple | no |
| Strain relief option | no |
| Thread | M25 |
| Thread type | Metric |
| Type of seal | Sealing ring |
| Version for | Straight |
| With locknut | no |
| Feature Name | Feature Value |
|---|---|
| Thread type (EF001758) | Metric |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polyethylene (PE) |
| Degree of protection (IP) (EF005474) | IP31 |
| Shock resistant (EF000084) | No |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7030 |
| Bend radius protection/trumpet flare (EF000734) | Yes |
| With locknut (EF005049) | No |
| Model (EF000010) | Straight |
| Multi seal area (EF005004) | No |
| Flat cable coupling (EF004685) | Yes |
| With strain relief (EF000878) | No |
| Type of sealing (EF001217) | EV009696 |
| Explosion-tested version (EF004191) | No |
