View larger

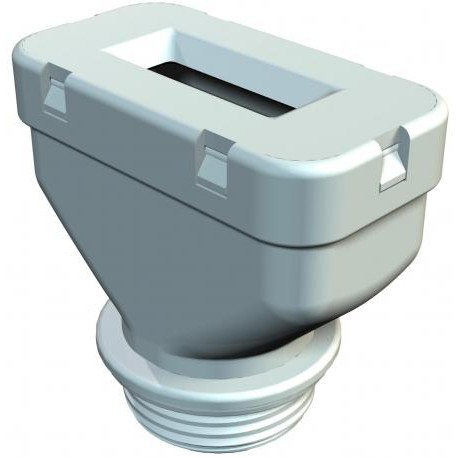

106 FL M25 10 29 2013010 OBO BETTERMANN Flat cable threaded connection , M25, Stone grey, 7030, Polyethylene..
106 FL M25 10 29
2013010
OBO BETTERMANN
25 Pcs.
Cables > Cable gland
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing a reliable barrier for non-standard conductors, the Obo Bettermann flat cable threaded connection 106 FL M25 10 29 seals multi-core ribbon lines effectively. Machine builders integrate these components to maintain strict ingress protection standards across automated industrial hardware. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend protection: yes
- CO2 Footprint (GWP) Cradle-to-Gate: 0,07 kg CO2e / 1 Piece
- Colour: Stone grey
- RAL: 7030
- Dimension: M25
- Dimension A: 30 mm
- Dimension B: 56 mm
- Dimension D: 35 mm
- Dimension G: M25 mm
- Dimension L: 52 mm
- Dimension L1: 12 mm
- Dimension L2: 40 mm
- explosion-proof: no
- Fibre-glass reinforced: no
- Flat cable gland: yes
- Flat cable/width, max.: 29 mm
- Flat cable/width, min.: 26 mm
More info
▲| Bend protection | yes |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,07 kg CO2e / 1 Piece |
| Colour | Stone grey; RAL 7030 |
| Dimension | M25 |
| Dimension A | 30 mm |
| Dimension B | 56 mm |
| Dimension D | 35 mm |
| Dimension G | M25 mm |
| Dimension L | 52 mm |
| Dimension L1 | 12 mm |
| Dimension L2 | 40 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flat cable gland | yes |
| Flat cable/width, max. | 29 mm |
| Flat cable/width, min. | 26 mm |
|---|---|
| Flat cables/thickness, max. | 10 mm |
| Flat cables/thickness, min. | 8 mm |
| For Ex zone | Without |
| Impact-resistant | no |
| Material | Polyethylene |
| Protection rating | IP31 |
| Sealing insert, multiple | no |
| Strain relief option | no |
| Thread | M25 |
| Thread type | Metric |
| Type of seal | Sealing ring |
| Version for | Straight |
| With locknut | no |
