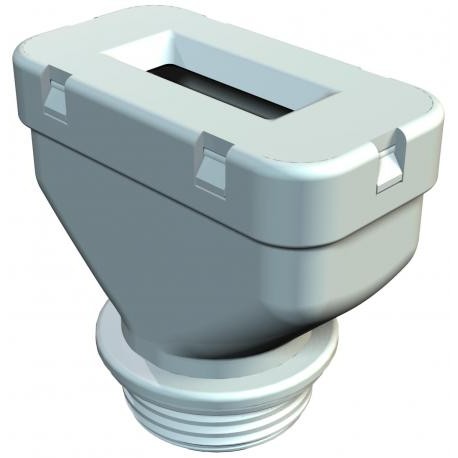

106 FL 21 9 39 2012804 OBO BETTERMANN Flat cable threaded connection , PG21, Stone grey, 7030, Polyethylene,..
106 FL 21 9 39
2012804
OBO BETTERMANN
25 Pcs.
Cables > Cable gland
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This 106 FL 21 9 39 flat cable threaded connection manufactured by Obo Bettermann facilitates the secure entry of ribbon cables into distribution enclosures. Specialized flat cable fittings are commonly utilized in crane systems and material handling equipment where multi-conductor flat lines are standard. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend protection: no
- CO2 Footprint (GWP) Cradle-to-Gate: 0,0807 kg CO2e / 1 Piece
- Colour: Stone grey; RAL 7030
- Dimension: PG21
- Dimension A: 30 mm
- Dimension B: 56 mm
- Dimension D: 35 mm
- Dimension G: PG21 mm
- Dimension L: 52 mm
- Dimension L1: 12 mm
- Dimension L2: 40 mm
- Fibre-glass reinforced: no
- Flat cable gland: yes
- Flat cable/width, max.: 39 mm
- Flat cable/width, min.: 36 mm
- Flat cables/thickness, max.: 9 mm
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0807 kg CO2e / 1 Piece |
| Colour | Stone grey; RAL 7030 |
| Dimension | PG21 |
| Dimension A | 30 mm |
| Dimension B | 56 mm |
| Dimension D | 35 mm |
| Dimension G | PG21 mm |
| Dimension L | 52 mm |
| Dimension L1 | 12 mm |
| Dimension L2 | 40 mm |
| Fibre-glass reinforced | no |
| Flat cable gland | yes |
| Flat cable/width, max. | 39 mm |
| Flat cable/width, min. | 36 mm |
|---|---|
| Flat cables/thickness, max. | 9 mm |
| Flat cables/thickness, min. | 7 mm |
| For Ex zone | Without |
| Impact-resistant | no |
| Material | Polyethylene |
| Protection rating | IP31 |
| Sealing insert, multiple | no |
| Strain relief option | no |
| Thread | Pg 21 |
| Thread type | PG |
| Type of seal | Sealing ring |
| Version for | Straight |
| With locknut | no |
