View larger

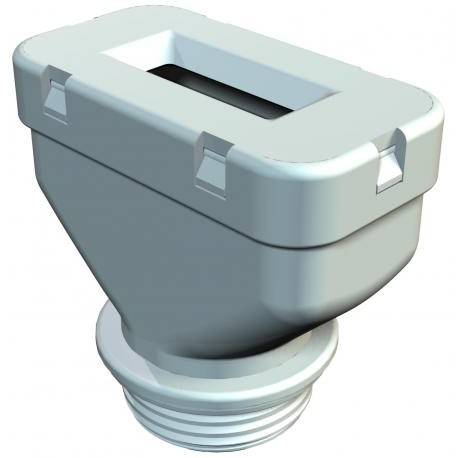

106 FL 21 9 22 2012820 OBO BETTERMANN Flat cable threaded connection , PG21, Stone grey, 7030, Polyethylene,..
106 FL 21 9 22
2012820
OBO BETTERMANN
25 Pcs.
Cables > Cable gland
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Obo Bettermann 106 FL 21 9 22 flat cable threaded connection is a specialized fitting configured to secure flat ribbon cables as they enter junction boxes, troughs, or control cabinets. It ensures proper alignment and sealing for specialized flat conductor configurations used in cranes, transport systems, and automation machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend protection: no
- CO2 Footprint (GWP) Cradle-to-Gate: 0,0844 kg CO2e / 1 Piece
- Colour: Stone grey
- RAL: 7030
- Dimension: PG21
- Dimension A: 30 mm
- Dimension B: 56 mm
- Dimension D: 35 mm
- Dimension G: PG21 mm
- Dimension L: 52 mm
- Dimension L1: 12 mm
- Dimension L2: 40 mm
- Fibre-glass reinforced: no
- Flat cable gland: yes
- Flat cable/width, max.: 22 mm
- Flat cable/width, min.: 19 mm
- Flat cables/thickness, max.: 9 mm
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0844 kg CO2e / 1 Piece |
| Colour | Stone grey; RAL 7030 |
| Dimension | PG21 |
| Dimension A | 30 mm |
| Dimension B | 56 mm |
| Dimension D | 35 mm |
| Dimension G | PG21 mm |
| Dimension L | 52 mm |
| Dimension L1 | 12 mm |
| Dimension L2 | 40 mm |
| Fibre-glass reinforced | no |
| Flat cable gland | yes |
| Flat cable/width, max. | 22 mm |
| Flat cable/width, min. | 19 mm |
|---|---|
| Flat cables/thickness, max. | 9 mm |
| Flat cables/thickness, min. | 7 mm |
| For Ex zone | Without |
| Impact-resistant | no |
| Material | Polyethylene |
| Protection rating | IP31 |
| Sealing insert, multiple | no |
| Strain relief option | no |
| Thread | Pg 21 |
| Thread type | PG |
| Type of seal | Sealing ring |
| Version for | Straight |
| With locknut | no |
