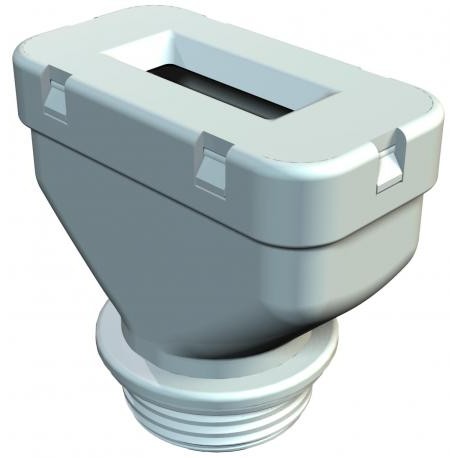

106 FL 21 8 33 2012782 OBO BETTERMANN Flat cable threaded connection , PG21, Stone grey, 7030, Polyethylene,..
106 FL 21 8 33
2012782
OBO BETTERMANN
25 Pcs.
Cables > Cable gland
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Obo Bettermann 106 FL 21 8 33 flat cable threaded connection accommodates specialized ribbon and flat conductors safely. Flat cable glands offer tailored sealing profiles to maintain enclosure protection standards when routing non-round cabling.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend protection: no
- CO2 Footprint (GWP) Cradle-to-Gate: 0,084 kg CO2e / 1 Piece
- Colour: Stone grey
- RAL: 7030
- Dimension: PG21
- Dimension A: 30 mm
- Dimension B: 56 mm
- Dimension D: 35 mm
- Dimension G: PG21 mm
- Dimension L: 52 mm
- Dimension L1: 12 mm
- Dimension L2: 40 mm
- Fibre-glass reinforced: no
- Flat cable gland: yes
- Flat cable/width, max.: 33 mm
- Flat cable/width, min.: 30 mm
- Flat cables/thickness, max.: 8 mm
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,084 kg CO2e / 1 Piece |
| Colour | Stone grey; RAL 7030 |
| Dimension | PG21 |
| Dimension A | 30 mm |
| Dimension B | 56 mm |
| Dimension D | 35 mm |
| Dimension G | PG21 mm |
| Dimension L | 52 mm |
| Dimension L1 | 12 mm |
| Dimension L2 | 40 mm |
| Fibre-glass reinforced | no |
| Flat cable gland | yes |
| Flat cable/width, max. | 33 mm |
| Flat cable/width, min. | 30 mm |
|---|---|
| Flat cables/thickness, max. | 8 mm |
| Flat cables/thickness, min. | 6 mm |
| For Ex zone | Without |
| Impact-resistant | no |
| Material | Polyethylene |
| Protection rating | IP31 |
| Sealing insert, multiple | no |
| Strain relief option | no |
| Thread | Pg 21 |
| Thread type | PG |
| Type of seal | Sealing ring |
| Version for | Straight |
| With locknut | no |
