View larger

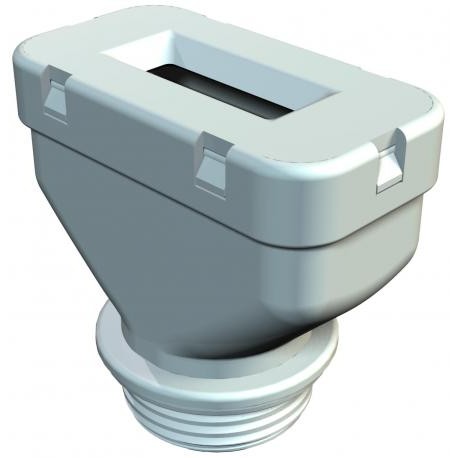

106 FL 21 6 30 2012855 OBO BETTERMANN Flat cable threaded connection , PG21, Stone grey, 7030, Polyethylene,..
106 FL 21 6 30
2012855
OBO BETTERMANN
25 Pcs.
Cables > Cable gland
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed specifically to accommodate flat ribbon cables in industrial control boxes, this 106 FL 21 6 30 threaded connection from Obo Bettermann ensures a tight seal. Flat cable glands provide custom aperture profiles that prevent moisture infiltration around non-standard conductor geometries. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend protection: no
- CO2 Footprint (GWP) Cradle-to-Gate: 0,0826 kg CO2e / 1 Piece
- Colour: Stone grey
- RAL: 7030
- Dimension: PG21
- Dimension A: 30 mm
- Dimension B: 56 mm
- Dimension D: 35 mm
- Dimension G: PG21 mm
- Dimension L: 52 mm
- Dimension L1: 12 mm
- Dimension L2: 40 mm
- Fibre-glass reinforced: no
- Flat cable gland: yes
- Flat cable/width, max.: 30 mm
- Flat cable/width, min.: 27 mm
- Flat cables/thickness, max.: 6 mm
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0826 kg CO2e / 1 Piece |
| Colour | Stone grey; RAL 7030 |
| Dimension | PG21 |
| Dimension A | 30 mm |
| Dimension B | 56 mm |
| Dimension D | 35 mm |
| Dimension G | PG21 mm |
| Dimension L | 52 mm |
| Dimension L1 | 12 mm |
| Dimension L2 | 40 mm |
| Fibre-glass reinforced | no |
| Flat cable gland | yes |
| Flat cable/width, max. | 30 mm |
| Flat cable/width, min. | 27 mm |
|---|---|
| Flat cables/thickness, max. | 6 mm |
| Flat cables/thickness, min. | 4 mm |
| For Ex zone | Without |
| Impact-resistant | no |
| Material | Polyethylene |
| Protection rating | IP31 |
| Sealing insert, multiple | no |
| Strain relief option | no |
| Thread | Pg 21 |
| Thread type | PG |
| Type of seal | Sealing ring |
| Version for | Straight |
| With locknut | no |
