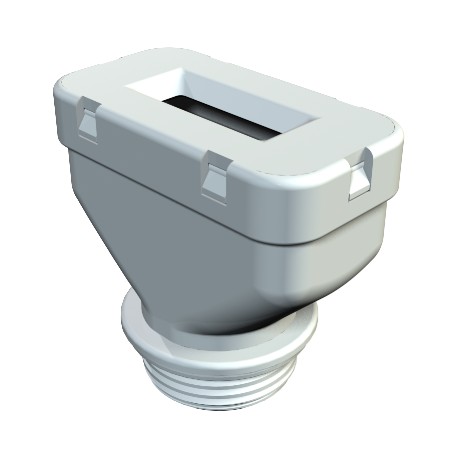

OBO BETTERMANN 106 FL 21 12 35 106 FL 21 12 35 2012847 OBO BETTERMANN Flat cable threaded connection , PG21, Stone grey, 7030, Polyethylene.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

106 FL 21 12 35 2012847 OBO BETTERMANN Flat cable threaded connection , PG21, Stone grey, 7030, Polyethylene..

106 FL 21 12 35

2012847

OBO BETTERMANN

25 Pcs.

Flat cable threaded connection , PG21, Stone grey, 7030, Polyethylene, PE Cable gland for flat cable 106 FL 21 12 35, PG21 Polyethylene, PE, Flat cable threaded connection, PG thread rectangular version, stone grey. Flat-cable entry, choke-nipple design with PG connecting thread to DIN 40430, protection rating IP31, with pre-mounted support sealing ring 107/F.

Cables > Cable gland
Gls Plastic

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 106 FL 21 12 35 2012847 OBO BETTERMANN Flat cable threaded connection , PG21, Stone grey, 7030, Polyethylene.. is designed to route and seal flat ribbon cables through enclosure openings. This specialized fitting accommodates non-circular cable profiles while maintaining protective standards in electrical distribution setups.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Thread type (EF001758): PG
  • Material (EF002169): Plastic
  • Material quality (EF001257): Polyethylene (PE)
  • Degree of protection (IP) (EF005474): IP31
  • Shock resistant (EF000084): No
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7030
  • Bend radius protection/trumpet flare (EF000734): No
  • With locknut (EF005049): No
  • Model (EF000010): Straight
  • Multi seal area (EF005004): No
  • Flat cable coupling (EF004685): Yes
  • With strain relief (EF000878): No
  • Type of sealing (EF001217): EV009696

More info

▲
Bend protectionno
CO2 Footprint (GWP) Cradle-to-Gate0,0838 kg CO2e / 1 Piece
ColourStone grey; RAL 7030
DimensionPG21
Dimension A30 mm
Dimension B56 mm
Dimension D35 mm
Dimension GPG21 mm
Dimension L52 mm
Dimension L112 mm
Dimension L240 mm
Fibre-glass reinforcedno
Flat cable glandyes
Flat cable/width, max.35 mm
Flat cable/width, min.31 mm
Flat cables/thickness, max.12 mm
Flat cables/thickness, min.9 mm
For Ex zoneWithout
Impact-resistantno
MaterialPolyethylene
Protection ratingIP31
Sealing insert, multipleno
Strain relief optionno
ThreadPg 21
Thread typePG
Type of sealSealing ring
Version forStraight
With locknutno
