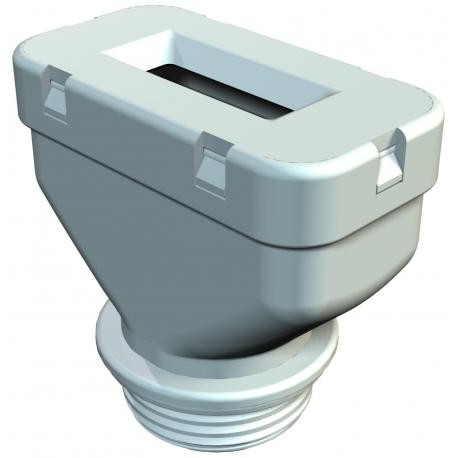

OBO BETTERMANN 106 FL 21 10 29 106 FL 21 10 29 2012839 OBO BETTERMANN Flat cable threaded connection , PG21, Stone grey, 7030, Polyethylene.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

106 FL 21 10 29 2012839 OBO BETTERMANN Flat cable threaded connection , PG21, Stone grey, 7030, Polyethylene..

106 FL 21 10 29

2012839

OBO BETTERMANN

25 Pcs.

Flat cable threaded connection , PG21, Stone grey, 7030, Polyethylene, PE Flat cable threaded connection, PG thread rectangular version, stone grey. Flat-cable entry, choke-nipple design with PG connecting thread to DIN 40430, protection rating IP31, with pre-mounted support sealing ring 107/F.

Cables > Cable gland
Gls Plastic

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A flat cable threaded connection manufactured by Obo Bettermann is designed specifically for routing ribbon or flat cables safely through enclosure walls while maintaining a tight seal. These specialist fittings ensure proper alignment and protection for multi-conductor flat lines in automation setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend protection: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0838 kg CO2e / 1 Piece
  • Colour: Stone grey; RAL 7030
  • Dimension: PG21
  • Dimension A: 30 mm
  • Dimension B: 56 mm
  • Dimension D: 35 mm
  • Dimension G: PG21 mm
  • Dimension L: 52 mm
  • Dimension L1: 12 mm
  • Dimension L2: 40 mm
  • Fibre-glass reinforced: no
  • Flat cable gland: yes
  • Flat cable/width, max.: 29 mm
  • Flat cable/width, min.: 26 mm
  • Flat cables/thickness, max.: 10 mm

More info

▲
Bend protectionno
CO2 Footprint (GWP) Cradle-to-Gate0,0838 kg CO2e / 1 Piece
ColourStone grey; RAL 7030
DimensionPG21
Dimension A30 mm
Dimension B56 mm
Dimension D35 mm
Dimension GPG21 mm
Dimension L52 mm
Dimension L112 mm
Dimension L240 mm
Fibre-glass reinforcedno
Flat cable glandyes
Flat cable/width, max.29 mm
Flat cable/width, min.26 mm
Flat cables/thickness, max.10 mm
Flat cables/thickness, min.8 mm
For Ex zoneWithout
Impact-resistantno
MaterialPolyethylene
Protection ratingIP31
Sealing insert, multipleno
Strain relief optionno
ThreadPg 21
Thread typePG
Type of sealSealing ring
Version forStraight
With locknutno
