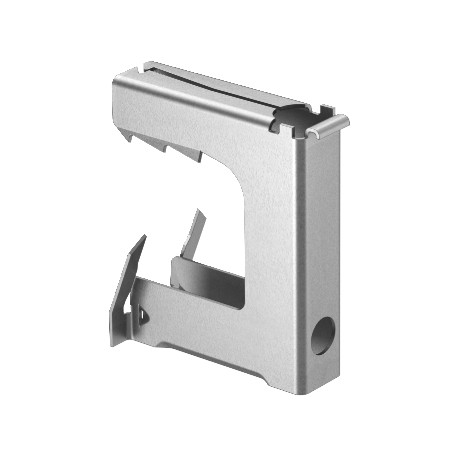

OBO BETTERMANN TK MULTI 24 TK MULTI 24 1485148 OBO BETTERMANN Beam clamp multifunctional, 16-24mm, Galvanised, MAGNI 565, Steel, St View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TK MULTI 24 1485148 OBO BETTERMANN Beam clamp multifunctional, 16-24mm, Galvanised, MAGNI 565, Steel, St

TK MULTI 24

1485148

OBO BETTERMANN

50 Pcs.

Beam clamp multifunctional, 16-24mm, Galvanised, MAGNI 565, Steel, St Fixing to beam TK MULTI 24, multifunctional 16-24mm Steel, St, Galvanized, MAGNI 565 Clamping clamp, multifunctional. The multifunctional clamping clip is suitable for attaching cables, protection tubes and cable trays to steel brackets of any size – one clamp for all applications. In this way, the clamping grapple application is flexible thanks to various clamping options. Quick and efficient assembly of the clamping jaws is possible without welding or drilling. It is easily assembled by squeezing or pushing. The clamping grapple can be used indoors or outdoors.

Automation > Fixing clamp
into beams

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A multifunctional beam clamp provides a versatile hanging point on structural steelwork for suspending electrical trays, conduit runs, and mechanical fixtures. Technicians rely on this Obo Bettermann TK MULTI 24 unit to create stable anchorage points without altering the underlying beam structure.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of fastening (EF002442): Clamping
  • Suitable for flange thickness (EF006596): 16 mm
  • Hinging (EF001076): No
  • Hinge adjustable (EF002645): No
  • Material (EF002169): Steel
  • Breaking load (EF004571): 1200 N

More info

▲
Easy to apply clamps by hammering or pushing into place.
Versatile thanks to very wide range of options for fixing to the beam clamp.

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
