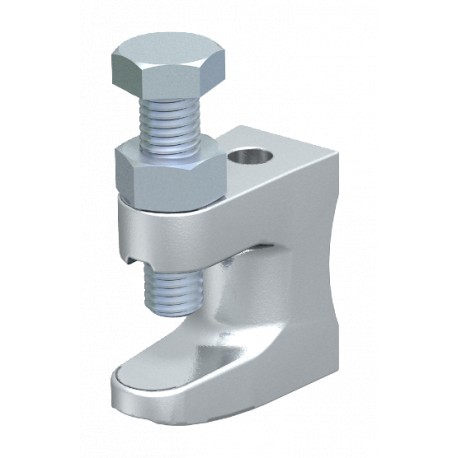

FL3-G M12 TG 1488090 OBO BETTERMANN Carrier screw clamp with female thread M12, 0-26mm, Cast iron, TG
FL3-G M12 TG
1488090
OBO BETTERMANN
25 Pcs.
Carrier screw clamp with female thread M12, 0-26mm, Cast iron, TG
Screw-in beam clamp, with thread. With thread.Max. tightening torque: 21 Nm
Automation > Fixing clamp
into beams
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Breaking load | 3,5 kN |
|---|---|
| Connection type/component | Thread |
| Dimension | 0-26mm |
| Dimension B | 23,5 mm |
| Dimension F | 26 mm |
| Dimension G (mm) | M10 |
| Dimension H | 54 mm |
| Dimension L | 58 mm |
| Fastening type | Bolts |
| Flange thickness F max. | 26 mm |
| Height | 54 mm |
|---|---|
| Hinge, adjustable | no |
| Hinged | no |
| Length | 58 mm |
| Material | Cast iron |
| Max. Tightening torque | 21 Nm |
| Suitable for metric threaded rod | 12 |
| Thread metric | 12 |
| Width | 23,5 mm |
