View larger
Images are for illustrative purposes only. Please refer to data sheet for details

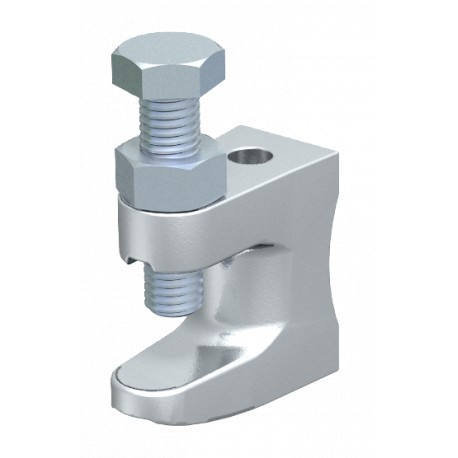

FL2-G M10 TG 1488082 OBO BETTERMANN Carrier screw clamp with female thread M10, 0-19mm, Cast iron, TG
FL2-G M10 TG
1488082
OBO BETTERMANN
50 Pcs.
Carrier screw clamp with female thread M10, 0-19mm, Cast iron, TG
Screw-in beam clamp, with thread. With thread.Max. tightening torque: 18 Nm
Automation > Fixing clamp
into beams
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Breaking load | 2,5 kN |
|---|---|
| Connection type/component | Thread |
| Dimension | 0-19mm |
| Dimension B | 21 mm |
| Dimension F | 20 mm |
| Dimension G (mm) | M10 |
| Dimension H | 42 mm |
| Dimension L | 44 mm |
| Fastening type | Bolts |
| Flange thickness F max. | 20 mm |
| Height | 42 mm |
|---|---|
| Hinge, adjustable | no |
| Hinged | no |
| Length | 44 mm |
| Material | Cast iron |
| Max. Tightening torque | 18 Nm |
| Suitable for metric threaded rod | 10 |
| Thread metric | 10 |
| Width | 21 mm |
