View larger
Images are for illustrative purposes only. Please refer to data sheet for details

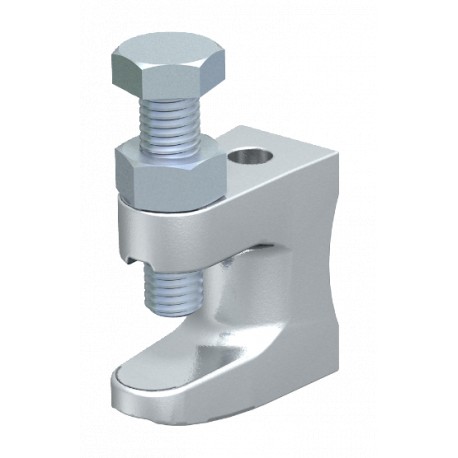

FL 3 TG 1488031 OBO BETTERMANN Carrier screw clamp with fastening hole, 0-26mm, Cast iron, TG
FL 3 TG
1488031
OBO BETTERMANN
25 Pcs.
Carrier screw clamp with fastening hole, 0-26mm, Cast iron, TG
Screw-in beam clamp, with gland hole. With gland hole.Max. tightening torque: 21 Nm
Automation > Fixing clamp
into beams
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Breaking load | 3,5 kN |
|---|---|
| Connection type/component | Hole |
| Dimension | 0-26mm |
| Dimension B | 23,5 mm |
| Dimension D | 13 mm |
| Dimension F | 26 mm |
| Dimension G (mm) | M10 |
| Dimension H | 54 mm |
| Dimension L | 58 mm |
| Fastening hole | 13 mm |
| Fastening type | Bolts |
| Flange thickness F max. | 26 mm |
|---|---|
| Height | 54 mm |
| Hinge, adjustable | no |
| Hinged | no |
| Length | 58 mm |
| Material | Cast iron |
| Max. Tightening torque | 21 Nm |
| Thread | M10 |
| Thread metric | 10 |
| Width | 23,5 mm |
