View larger
Images are for illustrative purposes only. Please refer to data sheet for details

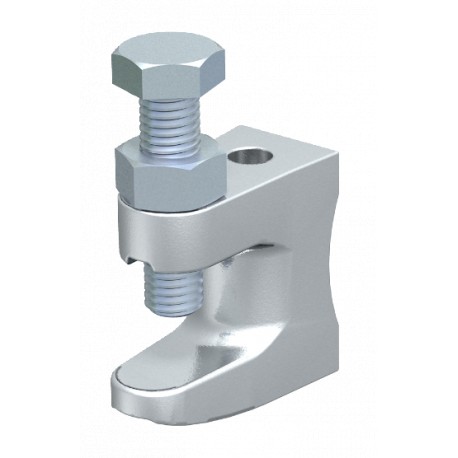

FL 1 TG 1488015 OBO BETTERMANN Carrier screw clamp with fastening hole, 0-17mm, Cast iron, TG
FL 1 TG
1488015
OBO BETTERMANN
50 Pcs.
Carrier screw clamp with fastening hole, 0-17mm, Cast iron, TG
Screw-in beam clamp, with gland hole. With gland hole.Max. tightening torque: 8 Nm
Automation > Fixing clamp
into beams
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Breaking load | 1,2 kN |
|---|---|
| Connection type/component | Hole |
| Dimension | 0-17mm |
| Dimension B | 19 mm |
| Dimension D | 9 mm |
| Dimension F | 18 mm |
| Dimension G (mm) | M8 |
| Dimension H | 35 mm |
| Dimension L | 38 mm |
| Fastening hole | 9 mm |
| Fastening type | Bolts |
| Flange thickness F max. | 18 mm |
|---|---|
| Height | 35 mm |
| Hinge, adjustable | no |
| Hinged | no |
| Length | 38 mm |
| Material | Cast iron |
| Max. Tightening torque | 8 Nm |
| Thread | M8 |
| Thread metric | 8 |
| Width | 19 mm |
