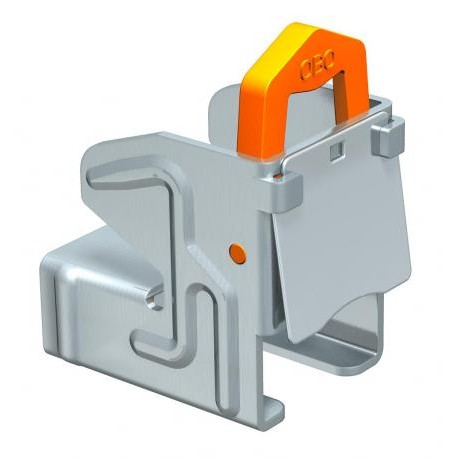

OBO BETTERMANN 328 1 328 1 1408011 OBO BETTERMANN Beam clamp with retaining spring, 5-11mm, Galvanised, Deltatone 500, Steel, St

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

328 1 1408011 OBO BETTERMANN Beam clamp with retaining spring, 5-11mm, Galvanised, Deltatone 500, Steel, St

Name: 328 1 1408011 OBO BETTERMANN Beam clamp with retaining spring, 5-11mm, Galvanised, Deltatone 500, Steel, St
Brand: OBO BETTERMANN
SKU: 1408011

Reference: 328 1

Code: 1408011

Manufacturer: OBO BETTERMANN

Units per package: 50 Pcs.

Description:

Beam clamp with retaining spring, 5-11mm, Galvanised, Deltatone 500, Steel, St Beam clamp, for profile rail CM3518. Screwless rustproof coated beam clamp, with blocking spring, suitable for profile rail, type CML3518 and CMS3518. For rapid fastening to steel profiles when installing cable tracks, clamp clips, light mounts, etc. A complete system consists of 2 beam clamps and one piece of C profile rail of any length, and 2 end caps.

Categories:
Automation > Fixing clamp
into beams

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This is an Obo Bettermann beam clamp with retaining spring 328 1 used for swift and secure installation onto structural steel flanges. Retaining spring beam clamps provide reliable temporary or permanent suspension points for lightweight electrical and mechanical installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

CO2 Footprint (GWP) Cradle-to-Gate: 0,3432 kg CO2e / 1 Piece
Connection type/component: Miscellaneous
Dimension: 5-11mm
Dimension B: 39,5 mm
Dimension H: 54,3 mm
Dimension L: 57 mm
Fastening type: Clamp
Flange thickness F max.: 11 mm
Flange thickness F min.: 5 mm
Height: 54,3 mm
Hinge, adjustable: no
Hinged: no
Length: 57 mm
Material: Steel
Surface: Zinc slat
Width: 39,5 mm

More info

▲

CO2 Footprint (GWP) Cradle-to-Gate	0,3432 kg CO2e / 1 Piece
Connection type/component	Miscellaneous
Dimension	5-11mm
Dimension B	39,5 mm
Dimension H	54,3 mm
Dimension L	57 mm
Fastening type	Clamp
Flange thickness F max.	11 mm

Flange thickness F min.	5 mm
Height	54,3 mm
Hinge, adjustable	no
Hinged	no
Length	57 mm
Material	Steel
Surface	Zinc slat
Width	39,5 mm
