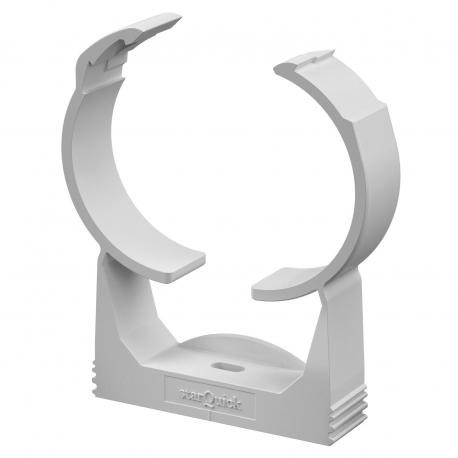

SQ-59 LGR 2146487 OBO BETTERMANN starQuick clip , 58,5-65mm, Light grey, 7035, Polyamide, PA
SQ-59 LGR
2146487
OBO BETTERMANN
15 Pcs.
Cables > Tube clamp
Clamps starQuick
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The SQ-59 LGR 2146487 OBO BETTERMANN starQuick clip , 58,5-65mm, Light grey, 7035, Polyamide, PA is a robust plastic conduit clamp used to anchor heavy cabling and tubing runs to industrial walls or machine bodies. Fastening clips maintain stable pipe alignment and prevent sagging in extensive electrical distributions.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Closed (EF001228): Yes
- Material (EF002169): Plastic
- Material quality (EF001257): Polyamide (PA)
- Connectable (EF006169): Yes
- Max. number of tubes (EF001225): 1
- Type of fastening (EF002442): Screw hole
- With inlay (EF005913): No
- Colour (EF000007): Grey
- Halogen free (EF000025): Yes
More info
▲Break load: with bolt DIN 96; diameter 4.5 mm, minimum break load at 20°.
starQuick clip Type SQ... a comprehensive programme of quality clips ideal for the use in outside areas such as parking garages, under bridges and on the exterior of steel structures. Climate conditions have no chance: the starQuick clips are made from UV weather-resistant polyamide.
The starQuick clips are available in 13 different sizes with a clamping range of 10-65 mm, allowing a problem-free installation on different pipe systems. starQuick is suitable for plastic and metal pipes, as well as electrical and sanitary installations. The clips can be installed on the wall and ceiling. Mounting is amazingly fast and uncomplicated, without the use of tools. Mounting of multiple pipes is also really easy:
- By arranging the single clips.
- By using the double bracket, allowing a firm hold and spacing by heavy loads.
- Rail system allows for an open spacing and numbering of the clips.
starQuick is reliable and can support heavy loads. A patented safety system guarantees that the pipes stay where they are. The pipe is secure in the all around closed clip.
