OBO BETTERMANN
>
VBS Connection and fastening systems - OBO BETTERMANN
>
Clamps starQuick
>
2146061
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

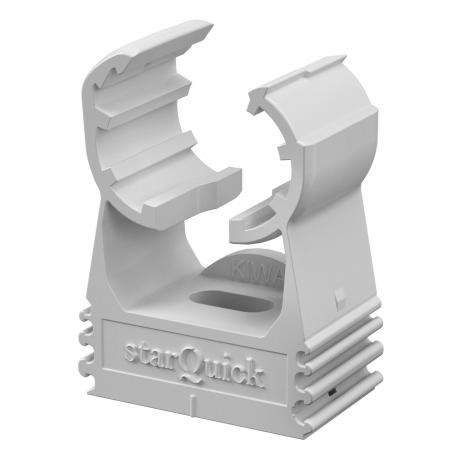

SQ-12 LGR 2146061 OBO BETTERMANN starQuick clip , 11,5-15mm, Light grey, 7035, Polyamide, PA
SQ-12 LGR
2146061
OBO BETTERMANN
100 Pcs.
starQuick clip , 11,5-15mm, Light grey, 7035, Polyamide, PA
starQuick SQ-12 LGR Clamp, 11.5-15mm Polyamide, PA,
StarQuick clamp. High-strength clamp for housing plastic and metal electrical and sanitary pipes, and Quick-Pipe pipes for electrical installation. Universal mounting options on wall, ceiling and steel constructions in indoor and outdoor areas. Flexible clamping range of several millimeters. Tool-free tube assembly. It can be placed in line up to Ø 28 mm, also with an OBO Quick or starQuick clamp. For high load values can be combined with double support. For variable distances and clamp quantity, it can be mounted on profiles.
Cables > Tube clamp
Clamps starQuick
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Can be arranged next to each other to size SQ-28.
Break load: with bolt DIN 96; diameter 4.5 mm, minimum break load at 20°.
starQuick clip Type SQ... a comprehensive programme of quality clips ideal for the use in outside areas such as parking garages, under bridges and on the exterior of steel structures. Climate conditions have no chance: the starQuick clips are made from UV weather-resistant polyamide.
The starQuick clips are available in 13 different sizes with a clamping range of 10-65 mm, allowing a problem-free installation on different pipe systems. starQuick is suitable for plastic and metal pipes, as well as electrical and sanitary installations. The clips can be installed on the wall and ceiling. Mounting is amazingly fast and uncomplicated, without the use of tools. Mounting of multiple pipes is also really easy:
- By arranging the single clips.
- By using the double bracket, allowing a firm hold and spacing by heavy loads.
- Rail system allows for an open spacing and numbering of the clips.
starQuick is reliable and can support heavy loads. A patented safety system guarantees that the pipes stay where they are. The pipe is secure in the all around closed clip.
Break load: with bolt DIN 96; diameter 4.5 mm, minimum break load at 20°.
starQuick clip Type SQ... a comprehensive programme of quality clips ideal for the use in outside areas such as parking garages, under bridges and on the exterior of steel structures. Climate conditions have no chance: the starQuick clips are made from UV weather-resistant polyamide.
The starQuick clips are available in 13 different sizes with a clamping range of 10-65 mm, allowing a problem-free installation on different pipe systems. starQuick is suitable for plastic and metal pipes, as well as electrical and sanitary installations. The clips can be installed on the wall and ceiling. Mounting is amazingly fast and uncomplicated, without the use of tools. Mounting of multiple pipes is also really easy:
- By arranging the single clips.
- By using the double bracket, allowing a firm hold and spacing by heavy loads.
- Rail system allows for an open spacing and numbering of the clips.
starQuick is reliable and can support heavy loads. A patented safety system guarantees that the pipes stay where they are. The pipe is secure in the all around closed clip.
| Feature Name | Feature Value |
|---|---|
| Closed (EF001228) | Yes |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polyamide (PA) |
| Connectable (EF006169) | Yes |
| Max. number of tubes (EF001225) | 1 |
| Type of fastening (EF002442) | Screw hole |
| With inlay (EF005913) | No |
| Colour (EF000007) | Grey |
| Halogen free (EF000025) | Yes |
