View larger
Images are for illustrative purposes only. Please refer to data sheet for details

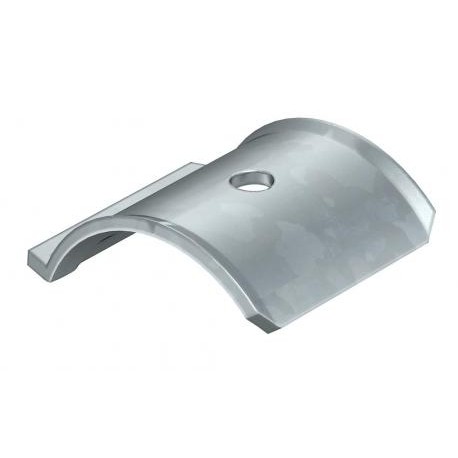

2058FW M 34 DD 1199889 OBO BETTERMANN Counter-trough , 28-34mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, ..
2058FW M 34 DD
1199889
OBO BETTERMANN
100 Pcs.
Counter-trough , 28-34mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
Counter-half round 2058FW M 34 DD, 28-34mm Steel, St,Galvanized in zinc/aluminum band, Double Dip, DIN EN 10346
Counter-trough, metal universal, DD. Metal counter-trough, for mounting on clamp clip. Can be used universally, irrespective of the rail.
Cables > Counter shell for cable clamp
Clamps BSS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Clamping range D, max. | 34 mm |
|---|---|
| Clamping range D, min. | 28 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0641 kg CO2e / 1 Piece |
| Counter-trough/clip version | Counter sleeve |
| Dimension | 28-34mm |
| Dimension B | 40 mm |
| Dimension H | 13,5 mm |
|---|---|
| Dimension L | 35 mm |
| Halogen-free | yes |
| Material | Steel |
| Suitable for max. cable diameter | 34 mm |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Counter shell |
| Chucking range (EF002391) | 28 mm |
| Suitable for max. cable diameter (EF000016) | 34 mm |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Pre-galvanised |
| Halogen free (EF000025) | Yes |
