2058FW M 28 FT 1199870 OBO BETTERMANN Counter-trough , 22-28mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, ..
2058FW M 28 DD
1199870
OBO BETTERMANN
100 Pcs.

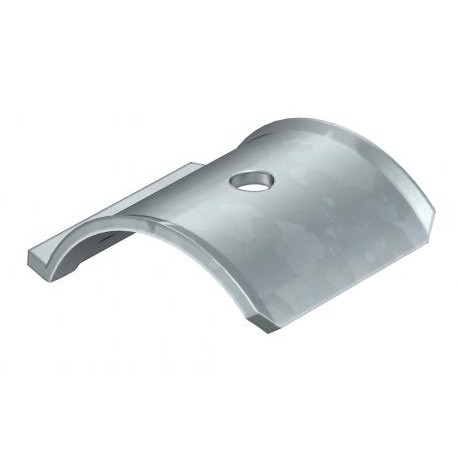

Counter-trough , 22-28mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
Counter-trough, metal universal, DD. Metal counter-trough, for mounting on clamp clip. Can be used universally, irrespective of the rail.
Cables > Counter shell for cable clamp
Clamps BSS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann counter-trough provides reliable mechanical backing for industrial cable clamps to prevent damage to wiring assemblies. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Clamping range D, max.: 28 mm
- Clamping range D, min.: 22 mm
- CO2 Footprint (GWP) Cradle-to-Gate: 0,0406 kg CO2e / 1 Piece
- Counter-trough/clip version: Counter sleeve
- Dimension: 22-28mm
- Dimension B: 34 mm
- Dimension H: 10,4 mm
- Dimension L: 35 mm
- Halogen-free: yes
- Material: Steel
- Suitable for max. cable diameter: 28 mm
- Surface: Strip galvanised zinc/aluminium, Double Dip
More info
▲| Clamping range D, max. | 28 mm |
|---|---|
| Clamping range D, min. | 22 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0406 kg CO2e / 1 Piece |
| Counter-trough/clip version | Counter sleeve |
| Dimension | 22-28mm |
| Dimension B | 34 mm |
| Dimension H | 10,4 mm |
|---|---|
| Dimension L | 35 mm |
| Halogen-free | yes |
| Material | Steel |
| Suitable for max. cable diameter | 28 mm |
| Surface | Strip galvanised zinc/aluminium, Double Dip |
