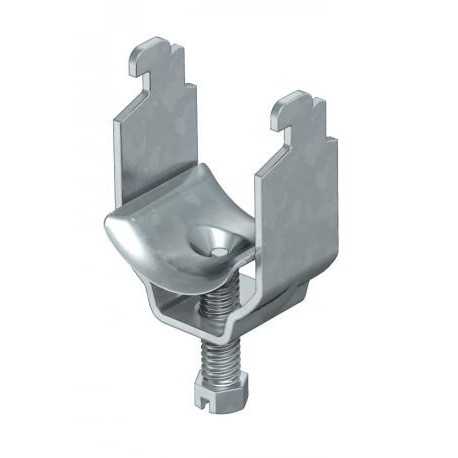

OBO BETTERMANN 2056N M 12 FT 2056N M 12 FT 1155407 OBO BETTERMANN Clamp clip with metal pressure sump, 8-12mm, Hot-dip galvanised, DIN EN.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2056N M 12 FT 1155407 OBO BETTERMANN Clamp clip with metal pressure sump, 8-12mm, Hot-dip galvanised, DIN EN..

2056N M 12 FT

1155407

OBO BETTERMANN

100 Pcs.

Clamp clip with metal pressure sump, 8-12mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Clamp on profile 2056N M 12 FT, half round met. fund. pressure 8-12mm Steel, St,Hot-dipped galvanized, DIN EN ISO 1461 Clamp on profile, single metal half-round. Suitable for all C-profiles with groove width of 11 - 12 mm; Minimum interior height 6.5 mm and minimum interior width 18.5 mm; The metal trays have very rounded edges around the perimeter so there is no risk of damaging the cables. A welded and/or locknut version is available on request for use in difficult conditions or with a risk of vibration.

Cables > One-piece strut clamp
Clamps BSS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Anchoring smaller diameter conduits to mounting rails is easily accomplished with the Obo Bettermann 2056N M 12 FT clamp clip with metal pressure sump. These sturdy retaining components are applied across industrial machinery and distribution boards to keep wiring harnesses tightly fixed.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Obo Bettermann
  • Manufacturer part number: 2056N M 12 FT
  • Catalogue code: 1155407
  • Manufacturer summary: Clamp clip with metal pressure sump, 8-12mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Clamp on profile 2056N M 12 FT, half round met. fund. pressure 8-12mm Steel, St,Hot-dipped galvanized, DIN EN ISO 1461 Clamp on

More info

▲
Suitable for all C profile rails with slot width 11-12 mm; at least 6.5 mm clear internal height and at least 18.5 mm clear internal width; metal troughs have strongly rounded edges on all sides, so that there is no risk of cable damage.
