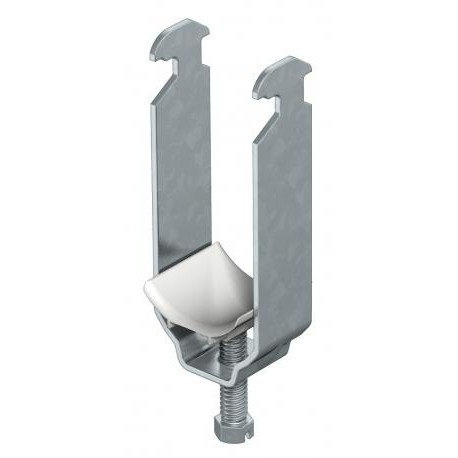

OBO BETTERMANN 2056 2 28 FT 2056 2 28 FT 1161288 OBO BETTERMANN Clamp clip double, 22-28mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2056 2 28 FT 1161288 OBO BETTERMANN Clamp clip double, 22-28mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, ..

2056 2 28 FT

1161288

OBO BETTERMANN

50 Pcs.

Clamp clip double, 22-28mm, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Clamp on profile 2056 2 28 FT, double 22-28mm Steel, St, Hot dipped galvanized, DIN EN ISO 1461 Semi-round clamp, double plastic half-round FT

Cables > One-piece strut clamp
Clamps BSS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann part number 2056 2 28 FT is a double clamp clip engineered for securing cables securely along profile rails in industrial installations. Technicians rely on these hardware components to manage wiring runs safely inside electrical cabinets and across structural framing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Chucking range (EF002391): 22 mm
  • Max. number of cables (EF001052): 2
  • Material clamp (EF006530): Steel
  • Surface protection clamp (EF005142): Hot dip galvanized
  • Material shell (EF014679): Plastic
  • Material quality shell (EF014685): Polypropylene (PP)
  • Surface protection shell (EF014680): Hot dip galvanized
  • Material screw (EF006529): Steel
  • Surface protection screw (EF005143): Hot dip galvanized
  • With counter shell (EF014681): No
  • Mounting method (EF000003): Profile rail
  • Halogen free (EF000025): Yes

More info

▲
Suitable for all C profile rails with slot width 16-17 mm
Hot-dip galvanised steel clip and bolt, polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
