View larger
Images are for illustrative purposes only. Please refer to data sheet for details

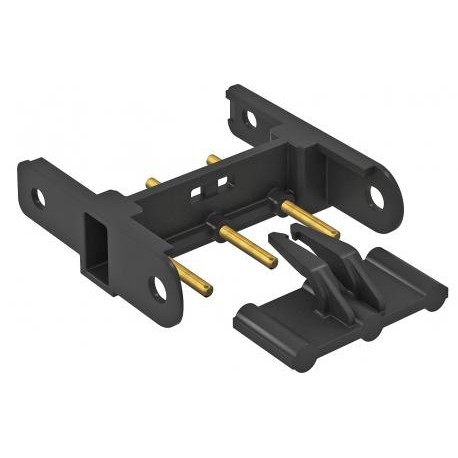

VB-SKS S 6117198 OBO BETTERMANN CONNECTOR VB-SKS S
VB-SKS S
6117198
OBO BETTERMANN
10 Pcs.
CONNECTOR VB-SKS S
Connector for female plug SKS/S black Polyamide, PA
Modul 45connect® connector. Connection adapter for combining STD-D0C / STD-D3C or STD-F0C / STD-F3C sockets.Note: Socket combinations with two connection adapters at most are permitted.
Automation > Socket outlet
EGS device systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Astro range | no |
|---|---|
| Closable | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0307 kg CO2e / 1 Piece |
| Colour | Black |
| Depth | 40 mm |
| Ejection mechanism | no |
| Halogen-free | yes |
| Height | 11,6 mm |
| Hinged cover | no |
| Insulated installation | no |
| Material | Polyamide |
| Nominal current | 16 A |
|---|---|
| Nominal voltage | 250 V |
| Random generator | no |
| Surge protection | no |
| Transparent | no |
| Width | 40 mm |
| With fine-wire fuse | no |
| With functional lighting | no |
| With integrated USB power supply | no |
| With on/off switch | no |
| With orientation lighting | no |
| Feature Name | Feature Value |
|---|---|
| With hinged lid (EF000117) | No |
| Colour (EF000007) | Black |
| Transparent (EF006243) | No |
| Lockable (EF000113) | No |
| Eject-mechanism (EF001051) | No |
| Insulated mounting (EF001588) | No |
| With function lighting (EF008861) | No |
| With orientation lighting (EF008862) | No |
| Over voltage protection (EF001332) | No |
| With miniature fuse (EF006571) | No |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Other |
| Halogen free (EF000025) | Yes |
| With on/off switch (EF000488) | No |
| Nominal current (EF000001) | 16 A |
| Nominal voltage (EF000002) | 250 V |
| Device width (EF008808) | 40 mm |
| Device height (EF008809) | 11.6 mm |
| Device depth (EF008810) | 40 mm |
