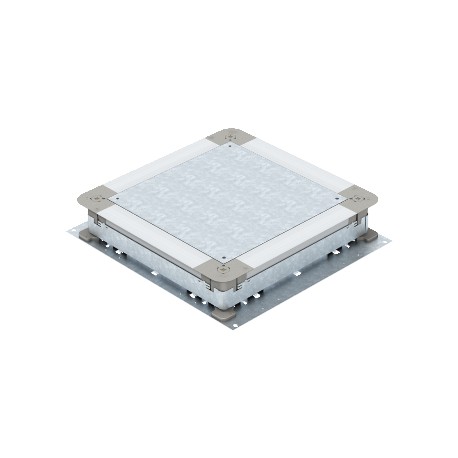

OBO BETTERMANN UZD 250-3 UZD 250-3 7410030 OBO BETTERMANN Junction and branch box for screed height 70¿125mm, 410x367x70, Strip-galva.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UZD 250-3 7410030 OBO BETTERMANN Junction and branch box for screed height 70¿125mm, 410x367x70, Strip-galva..

UZD 250-3

7410030

OBO BETTERMANN

1 Pcs.

Junction and branch box for screed height 70¿125mm, 410x367x70, Strip-galvanised, DIN EN 10147, Steel, St Derivation box. and reg. UZD 250-3, for height 70-125mm 410x367x70 Steel, St, strip galvanized, DIN EN 10346

Automation > Service box for underfloor installation
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A junction and branch box operates as a central node beneath flooring systems, allowing engineers to split, divert, and terminate multiple electrical circuits safely within a single enclosure. This structural component ensures that subfloor power pathways remain fully accessible and protected. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Nominal dimension (EF000132): 250 mm
  • Min. height finishing layer (EF007935): 70 mm
  • Levelling range (EF005136): 70 mm
  • Suitable for subfloor duct countersunk (closed) (EF005792): Yes
  • Suitable for subfloor duct overhead closed (EF006408): No
  • Duct height (EF005459): 28 mm
  • Duct width (EF007884): 190 mm
  • Built-in opening for floor column (EF004641): No
  • Material side wall (EF008133): Steel
  • Suitable for placing of sealing (EF004594): Yes
  • Decoupling possibility cover from base unit (EF007745): Yes
  • Bottom plate (EF004544): Yes

More info

▲
Underfloor junction and branch box for screed-covered underfloor installation systems.
