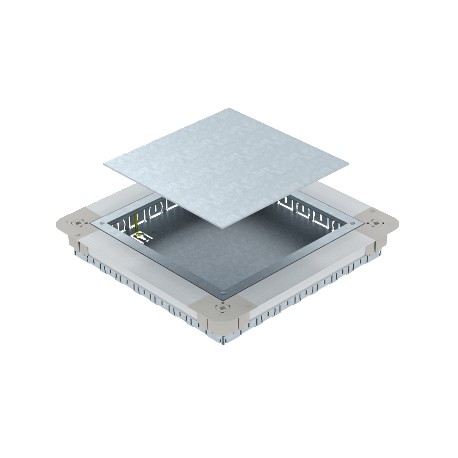

UGD55 250-3 9R 7410060 OBO BETTERMANN Underfloor box empty for GES9/55UV, 367x367x55, Strip-galvanised, DIN ..
UGD55 250-3 9R
7410060
OBO BETTERMANN
1 Pcs.
Underfloor box empty for GES9/55UV, 367x367x55, Strip-galvanised, DIN EN 10147, Steel, St
UGD250-3 underfloor box for GES9/55. Underfloor accessory box with mounting lid and lid blanking plate with sheet steel side walls. For the installation of a square GES9 55 service outlet in screed heights of 55 mm or more. Height can be infinitely adjusted to the nominal screed height and the screed can be worked flush to the screed scraping edge. With 7 x M20, 3 x M25, 4 x M32 pipe insertion openings on each side. Usable pipe size at a system height of 55 mm: M20.
Automation > Service box for underfloor installation
Other
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 25,7284 kg CO2e / 1 Piece |
|---|---|
| Cover version | Square |
| Decouplable | no |
| Dimension | 367x367x55 |
| Dimension a | 244 mm |
| Dimension A | 367 mm |
| Dimension b | 244 mm |
| Dimension B | 367 mm |
| Dimension h | 55 mm |
| Expansion option | For installation of accessories |
| Floor care | Dry |
| Floor plate | yes |
| For pipe connection | yes |
| Height-adjustment range, max. | 80 mm |
| Height-adjustment range, min. | 55 mm |
| Installation opening for flush-mount unit | Square |
|---|---|
| Installation opening for on-floor tank | no |
| Lowerable to be flush-floor | yes |
| Material | Steel |
| Nominal size | 250 mm |
| Nominal size for device installation units | 9 |
| Screed height, max. | 80 mm |
| Screed height, min. | 55 mm |
| Seal installation option | no |
| Suitable for screed-covered underfloor ducts | no |
| Suitable for screed-flush closed underfloor ducts | no |
| Suitable for underfloor ducts | no |
| Surface | Strip galvanized |
| Trunking width, max. | 250 mm |
| Trunking width, min. | 190 mm |
