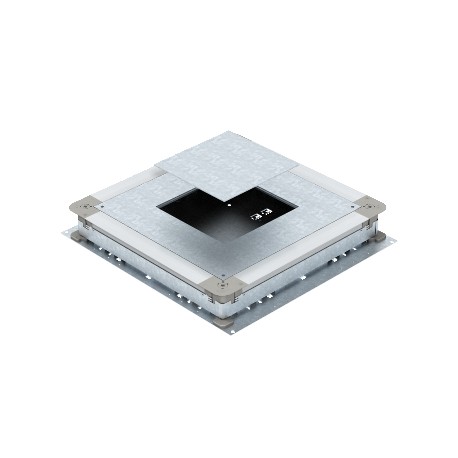

OBO BETTERMANN UGD 350-3 9 UGD 350-3 9 7410112 OBO BETTERMANN Underfloor box empty 350-3 for GES9, 510x467x70, Strip-galvanised, DIN EN.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UGD 350-3 9 7410112 OBO BETTERMANN Underfloor box empty 350-3 for GES9, 510x467x70, Strip-galvanised, DIN EN..

UGD 350-3 9

7410112

OBO BETTERMANN

1 Pcs.

Underfloor box empty 350-3 for GES9, 510x467x70, Strip-galvanised, DIN EN 10147, Steel, St Box for conj.portamec. UGD 350-3 9,350-3 for GES9 510x467x70 Steel, St,strip galvanized, DIN EN 10346

Automation > Service box for underfloor installation
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Underfloor box for direct installation of device installation units with mounting lid and lid blanking plate for screed-covered underfloor installation systems.
ETIM for 7410112 Underfloor trunking and floor boxes (EC000893)
Feature Name Feature Value
Nominal dimension (EF000132) 350 mm
Min. height finishing layer (EF007935) 70 mm
Levelling range (EF005136) 70 mm
Suitable for subfloor duct countersunk (closed) (EF005792) Yes
Suitable for subfloor duct overhead closed (EF006408) No
Duct height (EF005459) 28 mm
Duct width (EF007884) 190 mm
Built-in opening for floor column (EF004641) No
Built-in opening for built-in unit (EF007738) Square
Material side wall (EF008133) Steel
Suitable for placing of sealing (EF004594) Yes
Decoupling possibility cover from base unit (EF007745) Yes
Bottom plate (EF004544) Yes
