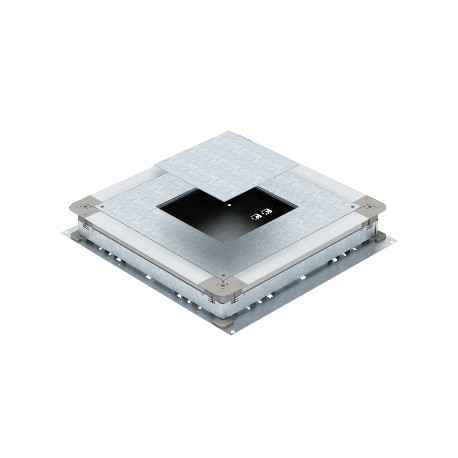

OBO BETTERMANN UGD 350-3 4 UGD 350-3 4 7410104 OBO BETTERMANN Underfloor box empty 350-3 for GES4, 510x467x70, Strip-galvanised, DIN EN.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UGD 350-3 4 7410104 OBO BETTERMANN Underfloor box empty 350-3 for GES4, 510x467x70, Strip-galvanised, DIN EN..

UGD 350-3 4

7410104

OBO BETTERMANN

1 Pcs.

Underfloor box empty 350-3 for GES4, 510x467x70, Strip-galvanised, DIN EN 10147, Steel, St Box for conj.portamec. UGD 350-3 4,350-3 for GES4 510x467x70 Steel, St,strip galvanized, DIN EN 10346 UGD350-3 GES 4 for square mounting units, for pavement height 70-125 mm. Underfloor sockets for underfloor channels with sheet steel side walls. For mounting units of the selected nominal size. It can be continuously leveled at the pavement height (fast levelling is possible) and the pavement can be mounted flush with the pull-out edge. With the possibility of acoustic decoupling after floor assembly and application of heavy loads with additional accessories.

Automation > Service box for underfloor installation
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An empty underfloor box provides a secure structural cavity integrated into screed floors to support modular service units and keep wiring networks safely contained. Industrial fit-out teams depend on these enclosures to bridge subfloor ducting with accessible tabletop or floor outlets. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Nominal dimension (EF000132): 350 mm
  • Min. height finishing layer (EF007935): 70 mm
  • Levelling range (EF005136): 70 mm
  • Suitable for subfloor duct countersunk (closed) (EF005792): Yes
  • Suitable for subfloor duct overhead closed (EF006408): No
  • Duct height (EF005459): 28 mm
  • Duct width (EF007884): 190 mm
  • Built-in opening for floor column (EF004641): No
  • Built-in opening for built-in unit (EF007738): Square
  • Material side wall (EF008133): Steel
  • Suitable for placing of sealing (EF004594): Yes
  • Decoupling possibility cover from base unit (EF007745): Yes
  • Bottom plate (EF004544): Yes

More info

▲
Underfloor box for direct installation of device installation units with mounting lid and lid blanking plate for screed-covered underfloor installation systems.
